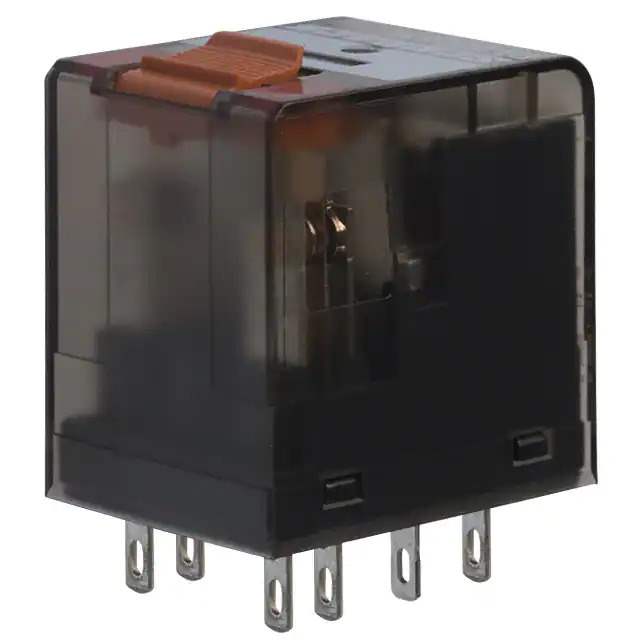

PT270024 Real Image
Same model may have multiple batches, images only for reference.

PT270024

Part No PT270024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 12A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series PT, SCHRACK
Package Bulk
Product Status Active
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 12 A
Switching Voltage 400VAC - Max
Coil Current 30.8 mA
Coil Type Non Latching
Features Mechanical Indicator, Test Button
Termination Style Plug In, Quick Connect - 0.110" (2.8mm)
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 777 Ohms
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 890336-PT270024
Ultra Librarian 3D Model Ultra Librarian PT270024 CAD Model

Description

The 823571 relay from TE Connectivity is a power relay designed for various applications.

  • Series: PT and SCHRACK
  • Termination Style: Plug-in, quick connect
  • Package: Bulk
  • Contact Form: DPDT (2 Form C)
  • Contact Material: Silver nickel (AgNi)
  • Coil Resistance: 777 Ohms
  • Coil Current: 30.8 mA
  • Operate Time: 15 ms
  • Release Time: 10 ms
  • Coil Voltage: 24VDC
  • Contact Rating: 12 A
  • Switching Voltage: 400VAC maximum
  • Application: General-purpose relay
  • Mounting Type: Socketable
  • Operating Temperature: -40°C to 70°C
  • ECCN: EAR99
  • Status: Active
