Same model may have multiple batches, images only for reference.

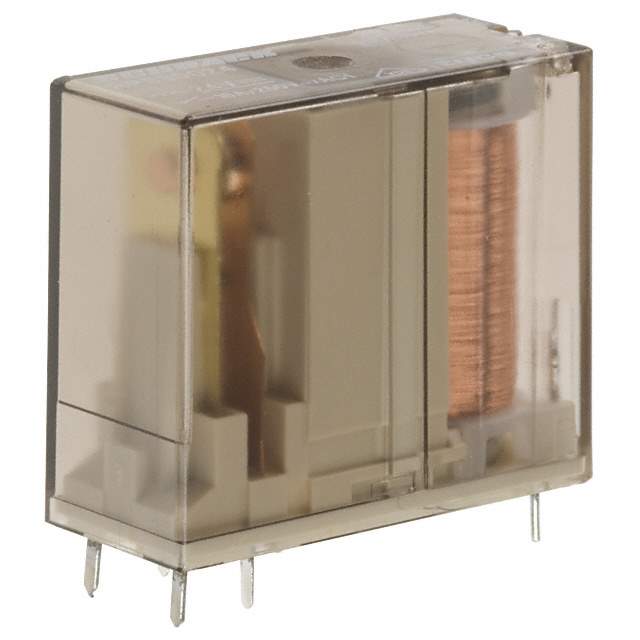

RP310024 Real Image
Same model may have multiple batches, images only for reference.

RP310024

Part No RP310024
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 24V
Datasheet
RP310024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 21.8mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 8ms
Release Time 2ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 500 mW
Coil Resistance 1.1 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 210849-RP310024
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Power Management, Automation & Process Control, HVAC
Ultra Librarian 3D Model Ultra Librarian RP310024 CAD Model

Description

TE Connectivity Potter & Brumfield Relays is the manufacturer of the electronic component with Id 305608.

  • Packaging: Tube/rail
  • Termination Style: PC Pin
  • Protection: Sealed, flux protection
  • Contact Form: SPDT (1 Form C)
  • Mounting Type: Through-hole
  • Coil Resistance: 1.1 kOhms
  • Coil Current: 21.8mA
  • Operate Time: 8ms
  • Relay Type: General purpose
  • Coil Type: Non-latching
  • Coil Voltage: 24VDC
  • Contact Rating (current): 16A
  • Switching Voltage: 400VAC - Max
  • Turn On Voltage (Max): 16.8 VDC
  • Turn Off Voltage (Min): 2.4 VDC
  • Release Time: 2ms
  • Coil Power: 500 mW
  • Applications: Industrial, power management, automation & process control, and HVAC
  • Supply and Demand Status: Limited
