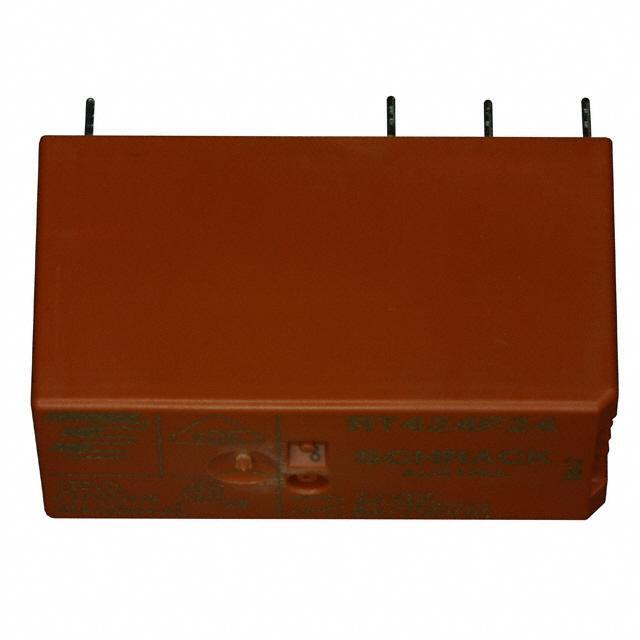

RT424F24 TE Connectivity
Same model may have multiple batches, images only for reference.

RT424F24

Part No RT424F24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 24V
Datasheet
RT424F24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Latching, Dual Coil
Coil Current 16.7mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 16.8 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 650 mW
Coil Resistance 886 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 083430-RT424F24
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RT424F24 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 083430-RT424F24 is a DPDT (2 Form C) latching relay with a sealed flux protection feature.

  • Insulation: Class F
  • Mounting Style: through-hole
  • Coil Voltage: 24VDC
  • Coil Resistance: 886 Ohms
  • Coil Current: 16.7mA
  • Contact Rating: 8A
  • Switching Voltage: 400VAC - Max
  • Turn-On Voltage: 16.8 VDC
  • Release Time: 5ms
  • Operating Temperature Range: -40°C to 85°C
  • Popularity: high
  • Supply and Demand Status: limited
