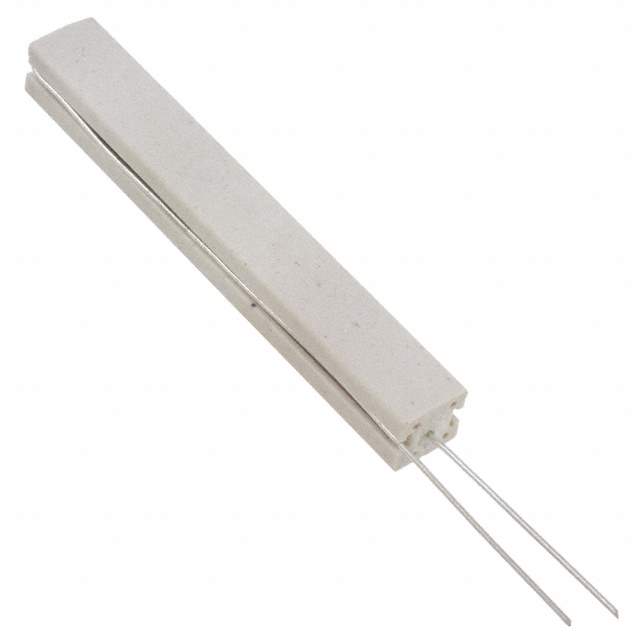

SBCHE1510RJ Real Image
Same model may have multiple batches, images only for reference.

SBCHE1510RJ

Part No SBCHE1510RJ
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 10 OHM 5% 17W AXIAL  /  10 Ohms ±5% 17W Through Hole Resistor Axial, Radial Formed Flame Proof, Safety Wirewound
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series SBC, CGS
Package Bulk
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 17W
Composition Wirewound
Features Flame Proof, Safety
Temperature Coefficient ±400ppm/°C
Temperature Range - Operating -55°C ~ 350°C
Package / Case Axial, Radial Formed
Dimension 0.394" x 0.354" Rectangular x 2.953" L (10.00mm x 9.00mm x 75.00mm)
Number of Terminations 2
Base Product Number SBCHE15
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Other Names 1623729-3-ND,A105593,1623729-3,16237293
Standard Package 100
Win Source Part Number 1091324-SBCHE1510RJ
Ultra Librarian 3D Model Ultra Librarian SBCHE1510RJ CAD Model

Description

The TE Connectivity Passive Product SBCHE1510RJ electronic component is a wirewound through-hole resistor with a resistance of 10 Ohms and a power rating of 17W.

  • Resistance: 10 Ohms
  • Power Rating: 17W
  • Flame Proof: Yes
  • Safety Rated: Yes
  • Tolerance: ±5%
  • Temperature Coefficient: ±400ppm/°C
  • Package: Bulk
  • Operating Temperature Range: -55°C to 350°C
  • Win Source Part Number: 1091324-SBCHE1510RJ
