Same model may have multiple batches, images only for reference.

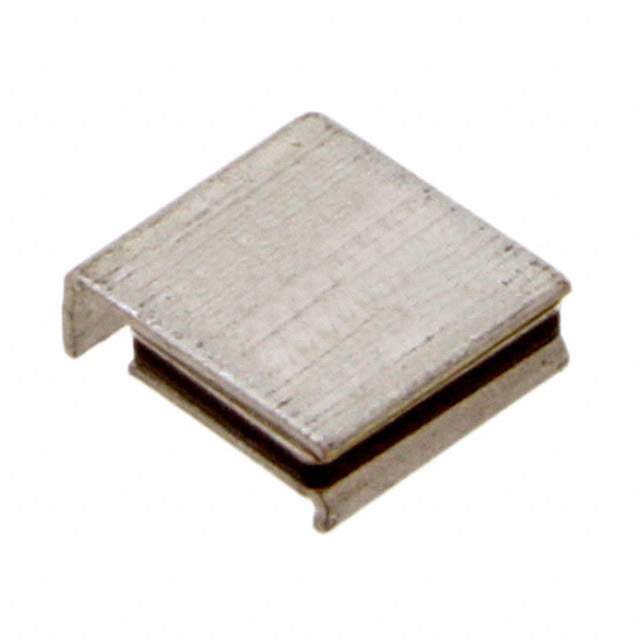

SMD030F-2018-2 Real Image
Same model may have multiple batches, images only for reference.

SMD030F-2018-2

Part No SMD030F-2018-2
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 0.3A SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
No 149757
Standard Package 1
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch
Packaging Reel
Voltage - Max 60V
Current - Max 20A
Current - Hold (Ih) (Max) 300mA
Current - Trip (It) 800mA
R Min/Max 0.500 ~ 2.300 Ohm
Time to Trip 1.5s
Package 2-SMD
Catalog PolySwitch Surface Mount
Win Source Part Number 038207-SMD030F-2018-2
Family Name SMD
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMD030F-2018-2 CAD Model

Description

The TE Connectivity PTC Resettable Fuses is a PolySwitch series electronic component that is great for use in circuit protection.

  • Voltage-max: 60V
  • Current-max: 20A
  • Package: 2-SMD
  • Standard Package: 1
