Same model may have multiple batches, images only for reference.

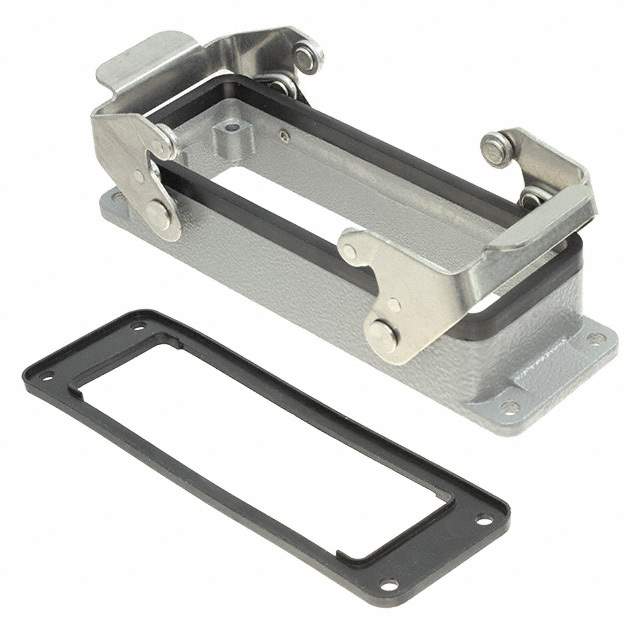

T1410241000-000 Real Image
Same model may have multiple batches, images only for reference.

T1410241000-000

Part No T1410241000-000
Manufacturer TE Connectivity
Catalog Heavy Duty Connectors
Description H24B-AGS  /  Base - Panel Mount Connector Bottom Entry H24B IP65 - Dust Tight, Water Resistant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors - Housings, Hoods, Bases
Mfr TE Connectivity AMP Connectors
Series HB
Package Bulk
Connector Type Base - Panel Mount
Style Bottom Entry
Size H24B
Lock Location Locking Clip (2) on Base Bottom
Dimension 5.598" L x 1.799" W x 1.173" H (142.20mm x 45.70mm x 29.80mm)
Housing Color Gray
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum Alloy, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number T141
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.8180
Other Names A125493,-T1410241000-000-SI
Standard Package 10
Win Source Part Number 1097695-T1410241000-000
Ultra Librarian 3D Model Ultra Librarian T1410241000-000 CAD Model

Description

TE Connectivity AMP Connectors has designed the HB series base-panel mount connector for heavy-duty connectors - housings, hoods, bases applications.

  • Entry Style: Bottom entry
  • Material: Aluminum alloy die-cast material
  • Color: Gray
  • Finish: Powder-coated
  • Ingress Protection: IP65 rated for dust-tight and water-resistant
  • Operating Temperature Range: -40°C to 125°C
  • Package: Bulk package with 10 standard pieces
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
