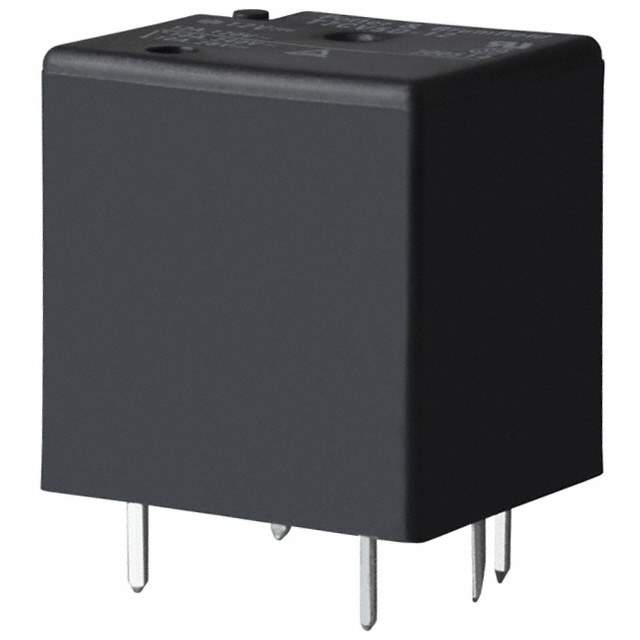

T7CS5D-12 Real Image
Same model may have multiple batches, images only for reference.

T7CS5D-12

Part No T7CS5D-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 12A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 12A
Switching Voltage 240VAC, 28VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 400 Ohms
Temperature Range - Operating -30°C to 85°C
Win Source Part Number 1105185-T7CS5D-12
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian T7CS5D-12 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays T7CS5D-12 is a general-purpose, non-latching relay with a single-pole, double-throw (SPDT) contact form.

  • Coil Voltage: 12VDC
  • Contact Rating: 12A
  • Mounting Type: Through-hole
  • Insulation Class: F
  • Feature: Fully Sealed
  • Popularity: Medium
  • Supply and Demand Status: Balanced
