Same model may have multiple batches, images only for reference.

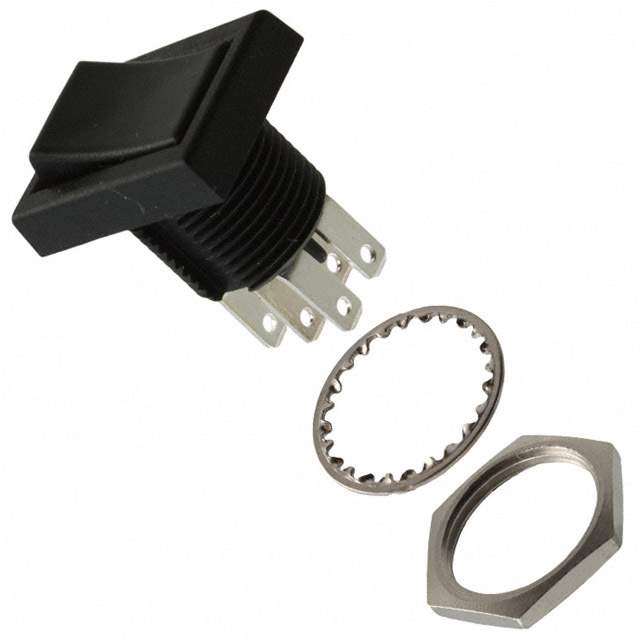

TRD23N10QC04 Real Image
Same model may have multiple batches, images only for reference.

TRD23N10QC04

Part No TRD23N10QC04
Manufacturer TE Connectivity
Catalog Rocker Switches
Description Switch Rocker ON None ON DPDT Quick Connect Curved Rocker 3A 125VAC 28VDC 100000Cycles
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 125
Contact Current Rating 3 A
Contact Material Copper, Silver
Contact Plating Silver
Contact Resistance 20 mΩ
Current Rating 3 A
Electrical Life 20 kcycles
ELV Compliant
Illumination Type Illuminated
Lead Free Not Applicable
Life (Cycles) 10 kcycles
Maximum Operating Temperature 80 °C
Max Voltage Rating (AC) 125 V
Max Voltage Rating (DC) 28 V
Mechanical Life 100 kcycles
Min Operating Temperature -20 °C
Mount Panel
Number of Poles 2
Number of Positions 2
Orientation Straight
RoHS Compliant
Switch Function On-On
Termination Quick Connect
Throw Configuration DPDT
Type Switch
VDE Tested No
Voltage Rating (AC) 125 V
Voltage Rating (DC) 28 V
Win Source Part Number 1038422-TRD23N10QC04
Categories Rocker Switches
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian TRD23N10QC04 CAD Model

Description

The 1038422-TRD23N10QC04 is a switch with two positions and a quick connect termination.

  • Positions: Two
  • Termination: Quick Connect
  • Current Rating: 3A
  • Contact Resistance: 20 mΩ
  • Illuminated: Yes
  • Maximum Voltage Rating: 125V AC and 28V DC
  • Mounting: Surface Mount Device (SMD)
  • Throw Configuration: DPDT
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 80°C
