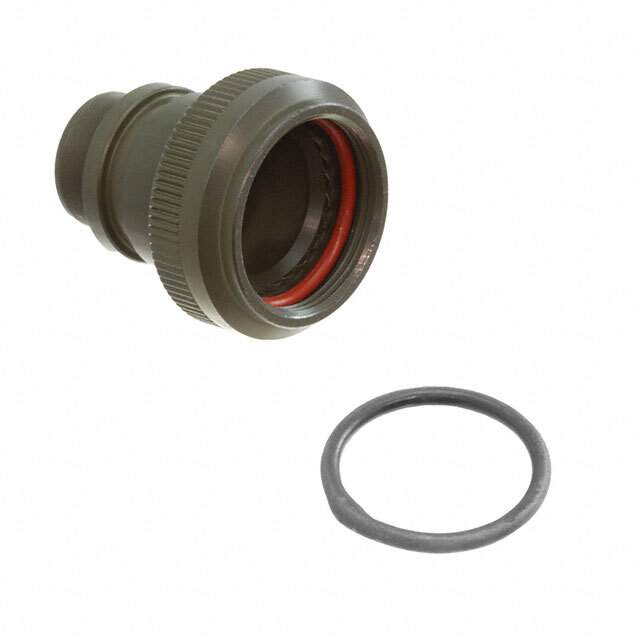

TXR40AB00-1408BI Real Image
Same model may have multiple batches, images only for reference.

TXR40AB00-1408BI

Part No TXR40AB00-1408BI
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL ADPT SZ 15D OLIVE  /  Olive Drab Connector Backshell, Heat Shrink Adapter M22x1 15, D
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Raychem Cable Protection
Series TXR
Package Bulk
Type Backshell, Heat Shrink Adapter
Diameter - Outside 1.142" (29.00mm)
Shell Size - Insert 15, D
Thread Size M22x1
Cable Exit 180°
Material Aluminum Alloy
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Tinel Lock
Ingress Protection Environment Resistant
Includes 4 pcs - 1 Backshell, 1 Braid, 1 O-Ring, 1 Tinel Ring
For Use With/Related Products MIL-DTL-38999 Series III, IV
Base Product Number TXR40AB00
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 990207-000
Standard Package 1
Win Source Part Number 1163163-TXR40AB00-1408BI
Ultra Librarian 3D Model Ultra Librarian TXR40AB00-1408BI CAD Model

Description

The TE Connectivity Raychem Cable Protection TXR40AB00-1408BI is a circular connector backshell and cable clamp with a Tinel lock feature.

  • Color: olive drab
  • Shielded: for ingress protection
  • Package Includes: four pieces, including one backshell, one braid, one O-ring, and one Tinel ring.
  • Compatible with: MIL-DTL-38999 Series III and IV
  • Alternative Parts Cross-Reference: includes 990207-000
  • Material: aluminum alloy with a cadmium plating
  • Cable Exit: 180°
  • Thread Size: M22x1
  • Diameter Outside: 1.142" (29.00mm)
  • Shell Size-Insert: 15, D
  • Supply and Demand Status: short
  • RoHS Compliant: non-compliant
