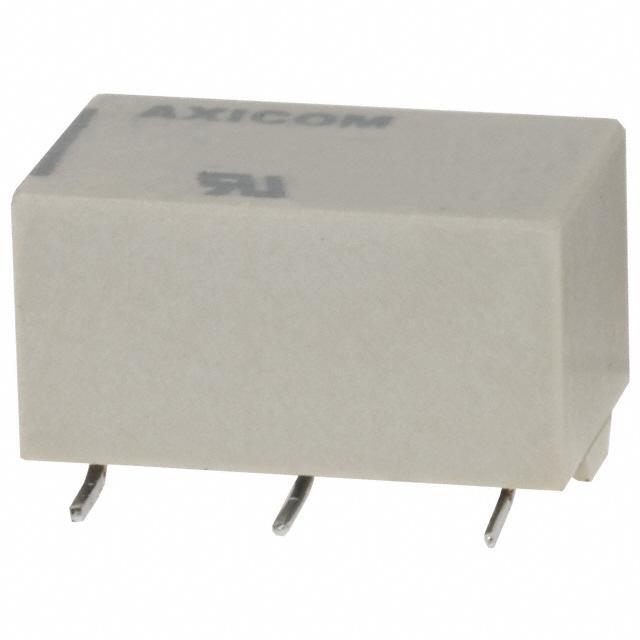

V23026D1024B201 *X020

Name: V23026D1024B201 *X020
Brand: TE Connectivity
SKU: 798961
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	V23026D1024B201 *X020
Manufacturer	TE Connectivity
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY GEN PURPOSE SPDT 1A 24V / Signal Relay 24VDC 1A SPDT(13.4x10.9x8.2)mm SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	TE Connectivity Potter & Brumfield Relays
Series	V23026, AXICOM
Packaging	Reel package
Relay Type	General
Coil Type	Non Latching
Coil Current	5.3mA
Coil Voltage	24VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	1A
Switching Voltage	150VAC, 125VDC - Max
Turn On Voltage (Maximum)	18 VDC
Turn Off Voltage (Minimum)	2.4 VDC
Operate Time	2ms
Release Time	2ms
Mounting	SMD
Termination Style	Gull Wing
Contact Material	Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au)
Coil Power	128 mW
Coil Resistance	4.5 kOhms
Operating Temperature Range	-40°C ~ 85°C
Win Source Part Number	798961-V23026D1024B201 *X020
Popularity	Medium
Supply and Demand Status	Limited
Family Name	V23026
Introduction Date	July 29, 2000
ECCN	EAR99
Country of Origin	Germany, Netherlands
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian V23026D1024B201 *X020 CAD Model

Alternative Products

Description

The TE Connectivity Potter & Brumfield Relays V23026 series relay is a general relay type manufactured by TE Connectivity Potter & Brumfield Relays.

Contact Form: SPDT
Contact Material: Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au)
Maximum Switching Voltage: 150VAC, 125VDC
Operating Voltage: 24VDC
Coil Resistance: 4.5 kOhms
Coil Current: 5.3mA
Relay Type: Non-latching
Operate Time: 2ms
Release Time: 2ms
Coil Power: 128mW
Halogen Free: Yes
Mounting Type: Surface Mount Device (SMD)
Termination Style: Gull-wing
Package Type: Reel
Turn-on Voltage: 18VDC
Turn-off Voltage: 2.4VDC
Manufactured In: Germany, Netherlands
Estimated EOL Date: 2027
