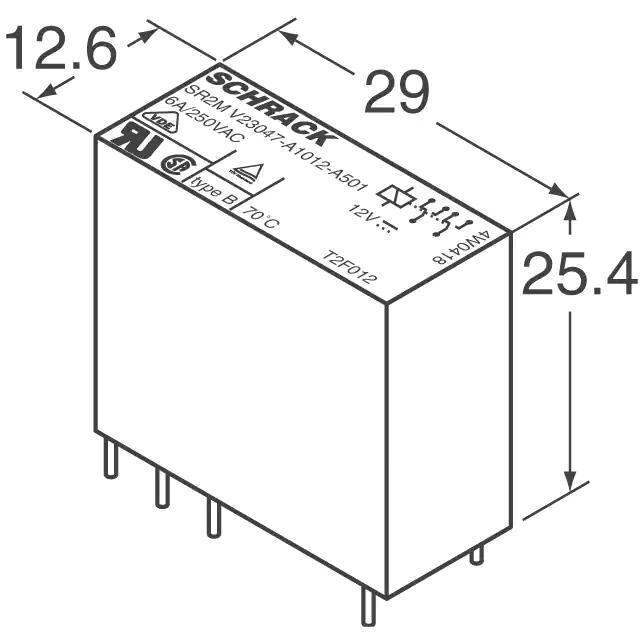

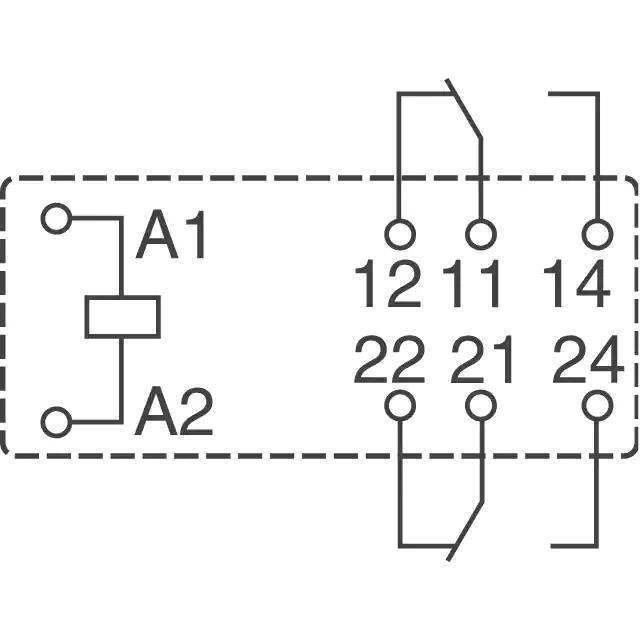

V23047-A1012-A501 Real Image V23047-A1012-A501 TE Connectivity Potter & Brumfield Relays V23047-A1012-A501 TE Connectivity Potter & Brumfield Relays
V23047-A1012-A501 Real Image V23047-A1012-A501 TE Connectivity Potter & Brumfield Relays V23047-A1012-A501 TE Connectivity Potter & Brumfield Relays
Same model may have multiple batches, images only for reference.

V23047-A1012-A501

Part No V23047-A1012-A501
Manufacturer TE Connectivity
Catalog Safety Relays
Description RELAY SAFETY DPDT 6A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 30000066-V23047-A1012-A501
Manufacturer TE Connectivity Potter & Brumfield Relays
Category Relays -Safety Relays
Series SR2M, SCHRACK
Package Tube
Coil Voltage 12VDC
Switching Voltage 400VAC - Max
Contact Rating (Current) 6 A
Mounting Type Through Hole
Coil Power 699mW
Base Product Number V23047
Ultra Librarian 3D Model Ultra Librarian V23047-A1012-A501 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays SR2M, SCHRACK is a safety relay with a coil voltage of 12VDC and a contact rating (current) of 6 A.

  • Coil Voltage: 12VDC
  • Contact Rating (Current): 6 A
  • Switching Voltage: 400VAC - Max
  • Coil Power: 699mW
  • Mounting Type: Through Hole
  • Base Product Number: V23047
  • Packaging: Tube
