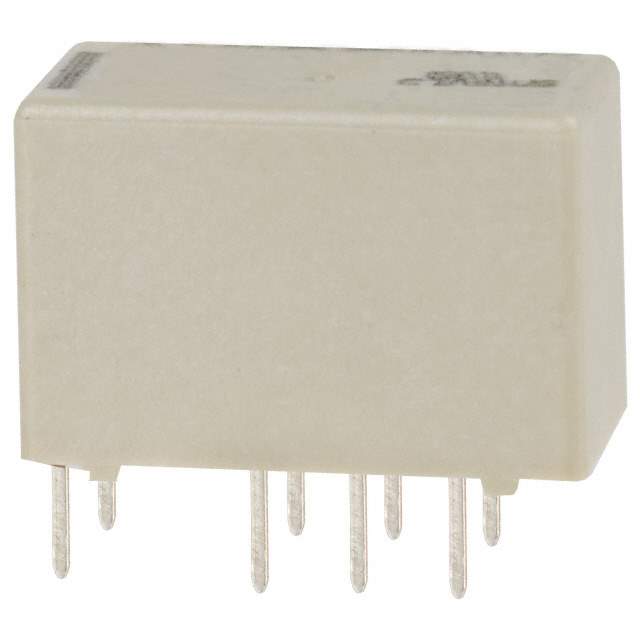

Same model may have multiple batches, images only for reference.

V23079A1011B301

Name: V23079A1011B301
Brand: TE Connectivity
SKU: 1315151
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	V23079A1011B301
Manufacturer	TE Connectivity
Catalog	Signal Relays, Up to 2 Amps
Description	RELAY GEN PURPOSE DPDT 2A 4.5VDC / General Purpose Relay DPDT (2 Form C) Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Relays>Signal Relays, Up to 2 Amps
Mfr	TE Connectivity Potter & Brumfield Relays
Series	V23079, AXICOM
Package	Tube
Mounting Type	Through Hole
Coil Voltage	4.5VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2 A
Switching Voltage	250VAC, 220VDC - Max
Coil Current	31.1 mA
Coil Type	Non Latching
Termination Style	PC Pin
Must Operate Voltage	3.38 VDC
Must Release Voltage	0.45 VDC
Operate Time	4 ms
Release Time	4 ms
Temperature Range - Operating	-40°C ~ 85°C
Contact Material	Silver Nickel (AgNi), Gold (Au)
Relay Type	General Purpose
Coil Resistance	145 Ohms
Base Product Number	V23079
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.41.0020
Win Source Part Number	1315151-V23079A1011B301
Ultra Librarian 3D Model	Ultra Librarian V23079A1011B301 CAD Model

Alternative Products

Description

The TE Connectivity Potter & Brumfield Relays electronic component is part of the V23079 series. V23079A1011B301 from TE Connectivity Potter & Brumfield Relays

Win Source Part Number: 1315151-V23079A1011B301
Relay Type: Signal Relay
Contact Form: DPDT (2 Form C)
Termination Style: PC Pin
Coil Voltage: 4.5VDC
Coil Resistance: 145 Ohms
Contact Material: Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current): 2 A
Switching Voltage: 250VAC, 220VDC - Max
