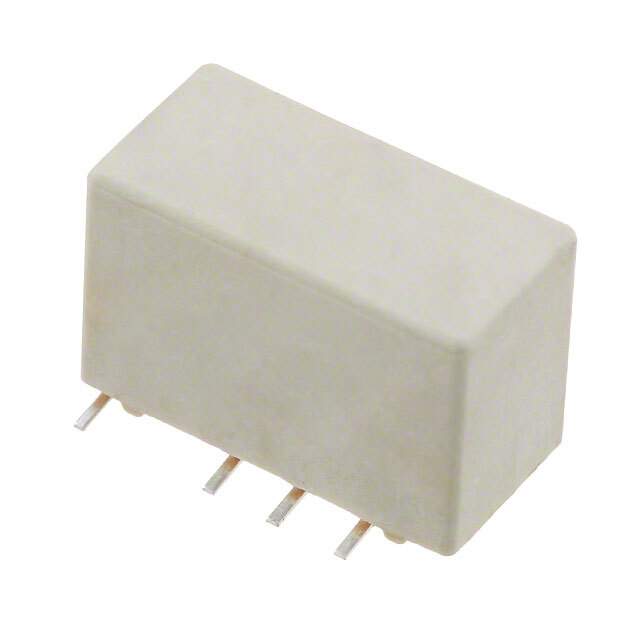

V23079D1005B301 Real Image
Same model may have multiple batches, images only for reference.

V23079D1005B301

Part No V23079D1005B301
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 2A 24V
Datasheet
V23079D1005B301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Reel - TR
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 5.8mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 4ms
Release Time 4ms
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 4.11 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 123209-V23079D1005B301
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian V23079D1005B301 CAD Model

Description

The V23079D1005B301 is a DPDT (2 Form C) relay with a non-latching coil type from TE Connectivity Potter & Brumfield Relays.

  • Coil Voltage: 24VDC
  • Coil Resistance: 4.11 kOhms
  • Coil Current: 5.8mA
  • Operate Time: 4ms
  • Release Time: 4ms
  • Relay Type: General Purpose
  • Contact Rating (Current): 2A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Turn On Voltage (max): 18 VDC
  • Turn Off Voltage (min): 2.4 VDC
  • Coil Power: 140 mW
  • Termination Style: Gull Wing
  • Mounting: SMD (SMT)
  • Packaging: Reel - TR
