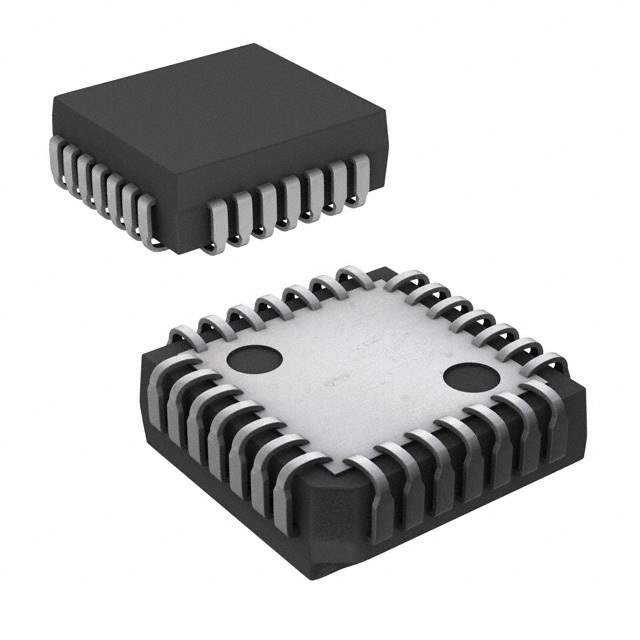

Product Overview: ADC0809CCV/NOPB

The ADC0809CCV/NOPB is a high-performance 8-bit analog-to-digital converter (ADC) from the reputable semiconductor manufacturer, Texas Instruments. This versatile component is designed to offer a perfect blend of accuracy, speed, and ease of integration for a wide range of applications, including data acquisition systems, microprocessor-controlled systems, and battery-operated devices.

Key Features

• Resolution: The ADC0809CCV/NOPB boasts an 8-bit resolution, providing 256 discrete values for analog signals, allowing for precise digital representation of the input signal.
• Conversion Time: With a fast conversion time, this ADC is capable of processing analog signals with minimal delay, making it ideal for real-time applications.
• No External Clock: The device includes an internal clock, which eliminates the need for external clocking components, thus simplifying the design and reducing the overall system cost.
• Channel Multiplexer: It features a built-in 8-channel multiplexer, giving the flexibility to connect up to eight single-ended analog inputs. This makes it highly suitable for systems that require multiple sensor readings.
• Easy Interface with Microprocessors: The ADC0809CCV/NOPB is designed to interface directly with a variety of microprocessors, ensuring seamless integration into digital systems.
• Single Power Supply: It operates on a single power supply ranging from +5V to +6.3V, which simplifies power management in embedded systems.

Applications

• Data Acquisition Systems
• Microprocessor-Controlled Equipment
• Battery-Powered Instruments
• Industrial Control Systems
• Robotics

Quality and Reliability

The ADC0809CCV/NOPB is available in a robust package that is designed to meet the industry's high standards for quality and reliability. Texas Instruments' commitment to excellence ensures that this ADC provides consistent performance and durability across various environmental conditions.

Environmental Compliance

As part of Texas Instruments' dedication to environmental responsibility, the ADC0809CCV/NOPB is designed to be compliant with RoHS (Restriction of Hazardous Substances) directives, making it an environmentally friendly choice for electronics designers and manufacturers.

Overall, the ADC0809CCV/NOPB from Texas Instruments is a reliable and cost-effective solution for converting analog signals to digital data with precision and speed, suitable for a broad spectrum of applications.
