The ADC108S022CIMTX is a high-performance, low-power, octal-channel, 10-bit Analog-to-Digital Converter (ADC) produced by Texas Instruments. This device is designed to provide precise digital conversion of analog input signals, making it an ideal choice for a wide range of applications, including data acquisition systems, medical instruments, and industrial automation.

Key Features

• Resolution: The ADC108S022CIMTX offers a 10-bit resolution, allowing for fine-grained digital representation of analog inputs.
• Channel Count: It features eight independent input channels, enabling simultaneous sampling of multiple signals.
• Sampling Rate: This ADC boasts a maximum sampling rate of 200 kSPS (kilo-samples per second), ensuring timely updates for dynamic signals.
• Low Power Consumption: Designed with power efficiency in mind, it operates with a supply voltage from 2.35V to 5.25V and features a low power consumption of just 1.8 mW at 200 kSPS.
• Interface: The device includes a serial interface that is SPI/QSPI/MICROWIRE compatible, facilitating easy integration with most microcontrollers and digital systems.

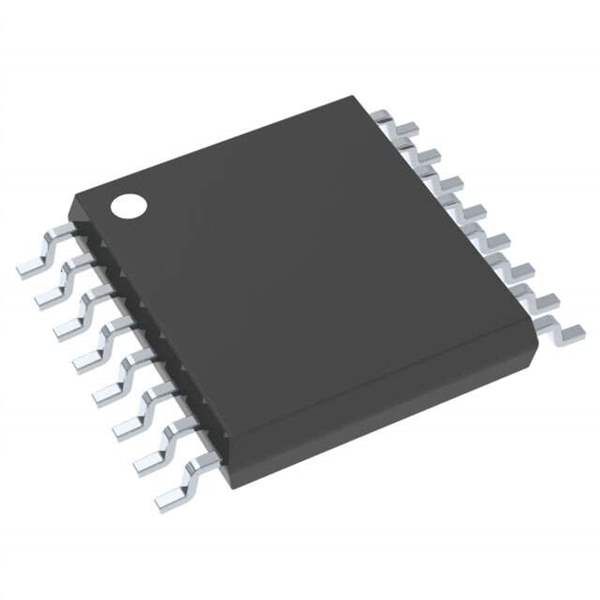

• Package: The ADC108S022CIMTX is available in a small VSSOP (Very-Thin Shrink Small-Outline Package), making it suitable for space-constrained applications.

Applications

This versatile ADC is well-suited for a variety of applications across multiple industries. It can be used in:

• Battery-operated devices where power efficiency is critical.
• Portable medical devices for patient monitoring and diagnostics.
• Industrial automation systems for process control and monitoring.
• Data acquisition systems where multiple analog signals need to be digitized.

Reliability and Quality

Texas Instruments is known for its commitment to quality and reliability, and the ADC108S022CIMTX is no exception. The device is built to meet high standards, ensuring consistent performance and durability across a wide range of operating conditions.
