The ADC14DC080CISQE/NOPB is a high-performance, dual-channel, 14-bit Analog-to-Digital Converter (ADC) developed by Texas Instruments, designed to deliver exceptional accuracy and speed for a wide range of applications. This ADC is an ideal choice for demanding data acquisition systems, including wireless communication, radar and satellite systems, and medical imaging equipment.

Key Features:

• High Resolution: With its 14-bit resolution, the ADC14DC080CISQE/NOPB offers precise digital representation of analog signals, ensuring detailed and accurate data conversion.
• Dual-Channel Operation: The device features two independent ADC channels, which can be operated simultaneously, doubling the data throughput and making it suitable for systems requiring multi-channel data acquisition.
• High Sampling Rate: The ADC supports a maximum sampling rate of 80 MSPS (Mega Samples Per Second), enabling the capture of high-frequency signals without loss of fidelity.
• Low Power Consumption: Despite its high-speed operation, the ADC14DC080CISQE/NOPB is designed for low power consumption, making it an efficient choice for power-sensitive applications.
• Flexible Interface: It offers a user-friendly interface with a parallel LVDS (Low-Voltage Differential Signaling) output, providing high-speed data transfer with reduced noise.
• Integrated Features: The device includes an internal voltage reference and an on-chip track-and-hold circuit, simplifying system design and reducing external component requirements.

Applications:

• Wireless Communication Systems
• Radar and Satellite Systems
• Medical Imaging Equipment
• Test and Measurement Instruments
• High-Speed Data Acquisition Systems

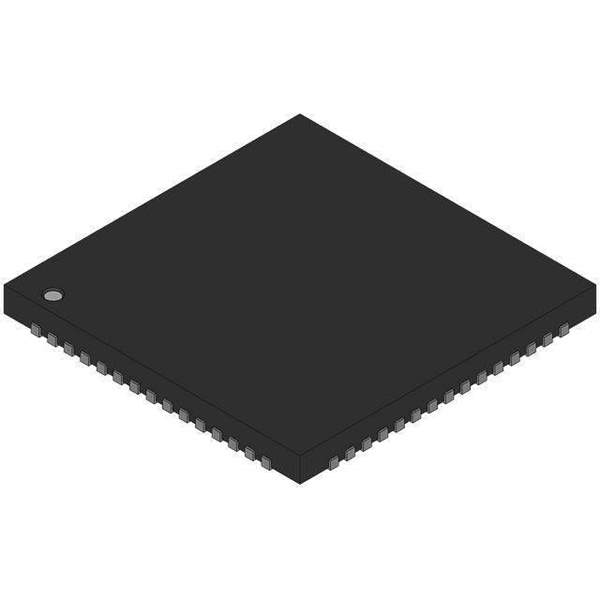

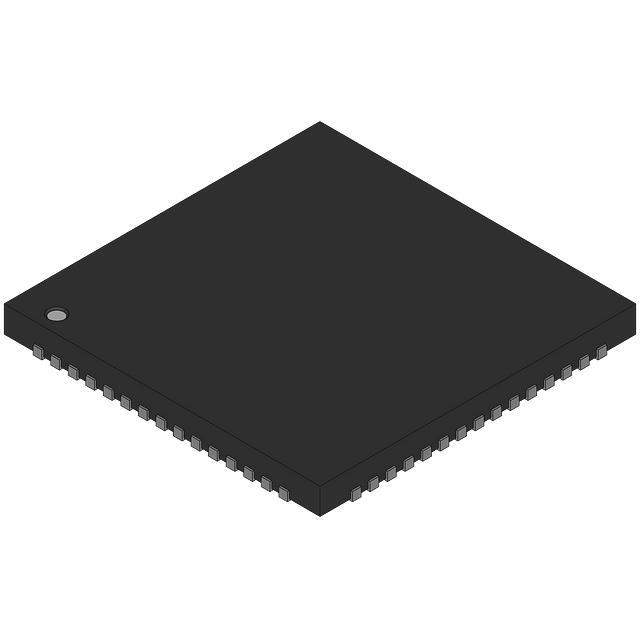

The ADC14DC080CISQE/NOPB is provided in a compact, surface-mount package, and is characterized for operation over an extended temperature range, making it versatile for use in both commercial and industrial environments. With its combination of high-speed, dual-channel operation, and low power consumption, this ADC from Texas Instruments represents a robust solution for advanced digital data conversion requirements.
