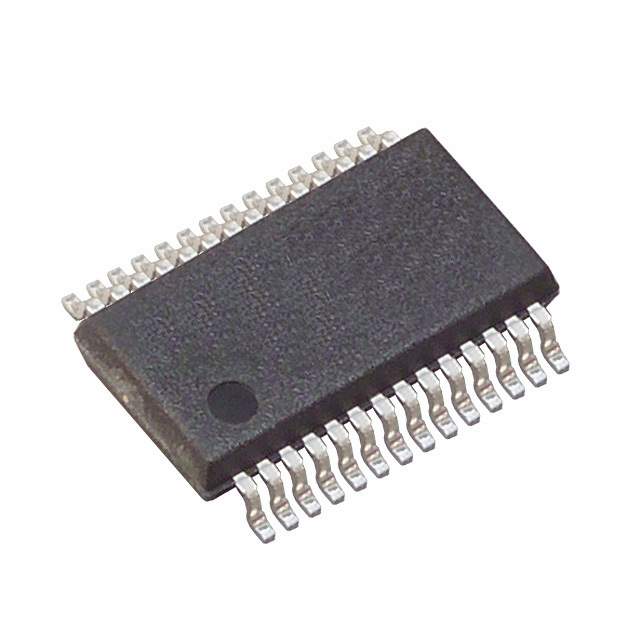

ADS1256IDBT

Part No ADS1256IDBT
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 24-BIT SPI PROGBL 28-SSOP
Datasheet
ADS1256IDBT Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 24
Sampling Rate 30k
Number of Inputs 4, 8
Input Type Differential, Single Ended
Data Interface SPI
Configuration MUX-PGA-ADC
Number of A/D Converters 1
Reference Type External
Analog Supply Voltage 5V
Digital Supply Voltage 1.8 V to 3.6 V
Features PGA
Temperature Range - Operating -40°C to 85°C
Case / Package 28-SSOP
Win Source Part Number 009277-ADS1256IDBT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Industrial, Medical
Ultra Librarian 3D Model Ultra Librarian ADS1256IDBT CAD Model

Description

ADS1256IDBT

The ADS1256IDBT is a high-performance, 24-bit analog-to-digital converter (ADC) designed for a wide range of precise measurement applications. Its low noise and high-resolution capabilities make it suitable for data acquisition systems and industrial process control.

  • Applications: Precision Measurement Systems, Data Acquisition Systems, Industrial Process Control, Medical Instrumentation, Scientific Research Equipment.
  • Features and Benefits: 24-bit Resolution for High-Precision Measurements, Low Noise Performance for Accurate Data Conversion, Programmable Data Rate for Flexibility, Integrated Multiplexer for Simplifying Designs.
  • Additional Details: The ADS1256IDBT offers a wide input voltage range and calibration options to enhance measurement accuracy.
