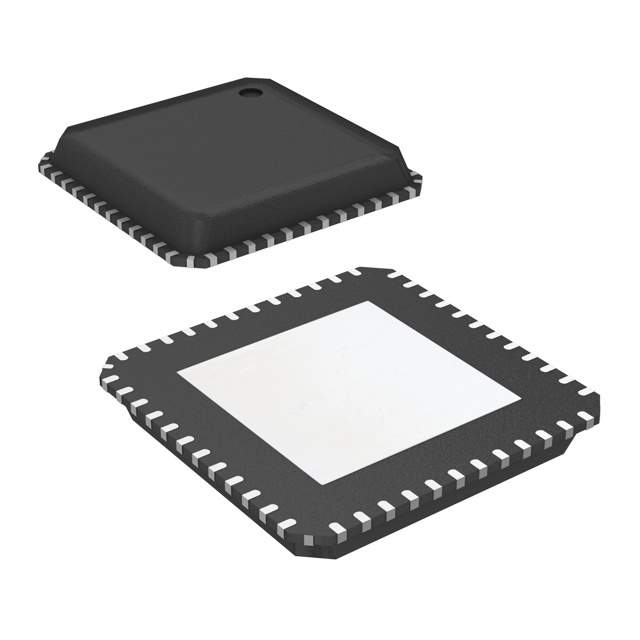

Texas Instruments ADS1258IRTCTG4 Precision ADC

The ADS1258IRTCTG4 from Texas Instruments is a high-precision, 24-bit, analog-to-digital converter (ADC) designed to provide exceptional performance in a wide range of applications requiring accurate signal conversion. This versatile ADC is part of Texas Instruments' ADS1258 series and is particularly well-suited for medical instrumentation, industrial process control, and scientific measurement systems.

Key Features:

• High Resolution: With its 24-bit resolution, the ADS1258IRTCTG4 offers excellent precision, making it ideal for applications where the accuracy of analog signal digitization is critical.
• Data Rate: This ADC supports data rates up to 23.7k samples per second, allowing for real-time monitoring and processing of analog signals.
• Multiple Channels: It features 16 channels with a programmable gain amplifier (PGA) for each channel, enabling the measurement of both small and large signals in a single device.
• Low Power Consumption: The device operates with a low power consumption, which is crucial for battery-powered and energy-efficient systems.
• Interface: It includes a flexible SPI-compatible serial interface, which simplifies the integration with microcontrollers and digital systems.
• Integrated Features: The ADS1258IRTCTG4 comes with an internal oscillator, temperature sensor, and a reference with low drift, reducing the need for external components and simplifying the design process.

Applications:

• Medical Instrumentation
• Industrial Process Control
• Scientific Measurement Systems
• Data Acquisition Systems
• Portable Instrumentation

The ADS1258IRTCTG4 is available in a compact VQFN-64 package and is specified over the industrial temperature range of -40°C to +85°C. Its combination of high resolution, multiple channels, and low power consumption makes it an excellent choice for designers seeking to create sophisticated and reliable data acquisition systems.

With its advanced features and Texas Instruments' commitment to quality, the ADS1258IRTCTG4 ADC is a powerful component for any precision measurement application.
