Product Overview: Texas Instruments ADS1284IRHFT

The Texas Instruments ADS1284IRHFT is a high-precision, low-noise, 24-bit analog-to-digital converter (ADC) designed to meet the stringent requirements of industrial, medical, and scientific applications. This ADC is part of Texas Instruments' extensive data converter portfolio and is recognized for its exceptional performance in data acquisition systems where accuracy and stability are critical.

Key Features

• High Resolution: With 24-bit resolution, the ADS1284IRHFT offers fine detail in signal conversion, allowing for precise measurements and analysis.
• Low Noise: The device boasts an ultra-low noise floor, making it ideal for applications where signal integrity is paramount, such as medical imaging and seismic monitoring.
• High Data Rate: The converter supports data rates up to 2 kSPS (kilosamples per second), providing a good balance between speed and resolution for various applications.
• Differential Inputs: It features four fully-differential input channels, enhancing common-mode noise rejection and improving the quality of the captured signals.
• Internal Reference: An onboard, low-drift voltage reference minimizes external components and simplifies design.
• Power Efficiency: With its low power consumption, the ADS1284IRHFT is suitable for power-sensitive applications, including portable and battery-operated devices.

Applications

The ADS1284IRHFT is versatile and can be used in a range of applications, such as:

• Industrial process control and automation
• Medical instrumentation, such as electrocardiograms (ECGs) and electroencephalograms (EEGs)
• Scientific research equipment
• Seismic data acquisition
• High-fidelity audio systems

Technical Specifications

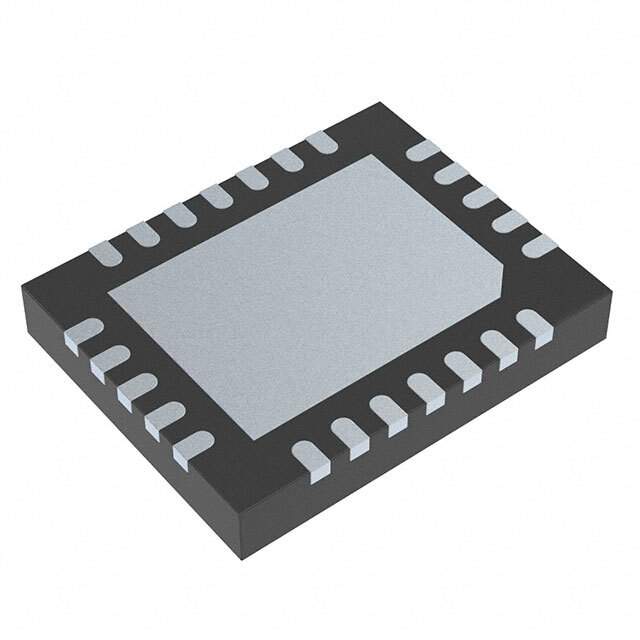

The device is packaged in a compact VQFN-38 footprint and operates over the extended industrial temperature range of -40°C to +125°C. It requires a single 5V power supply and includes a serial peripheral interface (SPI) for communication with microcontrollers or digital signal processors.

In summary, the Texas Instruments ADS1284IRHFT ADC is a robust, high-precision data converter that delivers accurate and reliable performance for advanced data acquisition systems. Its combination of features makes it a smart choice for engineers and designers looking to enhance the performance of their high-accuracy sensing systems.
