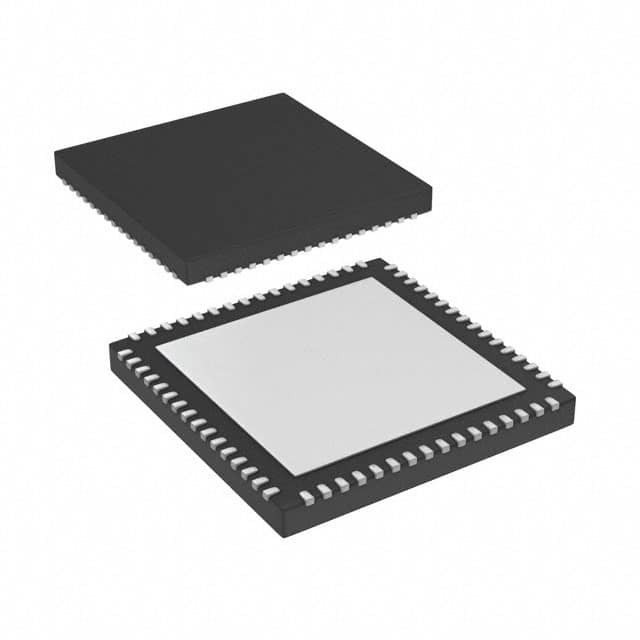

The Texas Instruments ADS42LB69IRGC25 is a high-performance, dual-channel, 16-bit analog-to-digital converter (ADC) designed to meet the rigorous demands of advanced signal processing applications. It operates at a sample rate of up to 250 MSPS (Mega Samples Per Second), making it an ideal choice for applications requiring high-speed data acquisition, such as wireless communication, test and measurement equipment, radar systems, and imaging.
Key Features
- High-Speed Performance: With a sampling rate of up to 250 MSPS, the ADS42LB69IRGC25 provides precise and fast data conversion, enabling real-time processing of wide bandwidth signals.
- Dual-Channel Operation: Its dual-channel design allows for simultaneous sampling of two analog inputs, which is critical for applications such as I/Q demodulation in communication systems.
- High Resolution: The 16-bit resolution ensures a high dynamic range, which is essential for capturing the full detail of the input signal without degradation.
- Low Power Consumption: Despite its high-speed capabilities, the ADC maintains low power consumption, which is crucial for thermal management and power efficiency in embedded systems.
- Digital Signal Processing: The device includes digital signal processing features such as a digital down-converter with programmable numerically controlled oscillator, decimation filters, and a complex mixer, enhancing its utility in digital radio applications.
Applications
- Wireless Communication Systems
- Test and Measurement Equipment
- Radar and Satellite Systems
- Medical Imaging
- High-Speed Data Acquisition Systems
Technical Specifications
| Parameter |
Value |
| Resolution |
16-bit |
| Number of Channels |
2 |
| Sample Rate |
Up to 250 MSPS |
| Input Frequency |
DC to 2 GHz |
| Interface |
JESD204B |
| Power Supply |
1.8V, 3.3V |
Overall, the Texas Instruments ADS42LB69IRGC25 ADC is a robust, high-speed data converter that delivers exceptional performance and is well-suited for a wide range of high-end industrial, commercial, and military applications.
