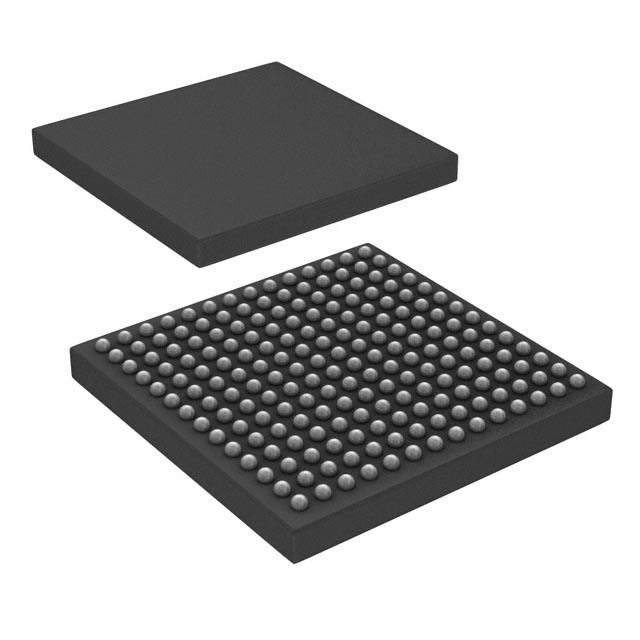

The ADS5407IZAYR is a high-performance, 12-bit, 500-MSPS analog-to-digital converter (ADC) designed by Texas Instruments. This cutting-edge component is an integral part of precision data acquisition systems in a wide range of applications, including wireless communications, test and measurement equipment, and radar systems.

Key Features

• High-Speed Performance: With a sampling rate of 500 million samples per second, the ADS5407IZAYR is capable of converting analog signals to digital data with exceptional speed, making it ideal for high-bandwidth applications.
• Resolution: The 12-bit resolution ensures that the digital representation of the analog input is accurate and detailed, allowing for precise signal processing.
• Input Bandwidth: The device features a wide input bandwidth that supports a variety of signal types and frequencies, providing flexibility in system design.
• Low Power Consumption: Despite its high-speed capabilities, the ADS5407IZAYR is designed for efficiency, with low power consumption that helps to reduce the overall system power requirements.
• Integrated Features: The ADC includes an on-chip buffer and a sample-and-hold circuit, which simplifies the design and reduces the need for additional external components.
• Output Format: The device supports LVDS (Low Voltage Differential Signaling) outputs, which minimizes noise and allows for reliable high-speed data transmission.

Applications

• Wireless Communication Infrastructure
• Test and Measurement Systems
• Radar and Satellite Antenna Arrays
• Medical Imaging Equipment
• High-Speed Data Acquisition Systems

With its robust feature set and high-speed operation, the ADS5407IZAYR from Texas Instruments is a top choice for engineers and designers looking to build advanced systems requiring precise and rapid data conversion. Its reliability, combined with Texas Instruments' support and resources, makes it a valuable addition to any high-performance electronic system.
