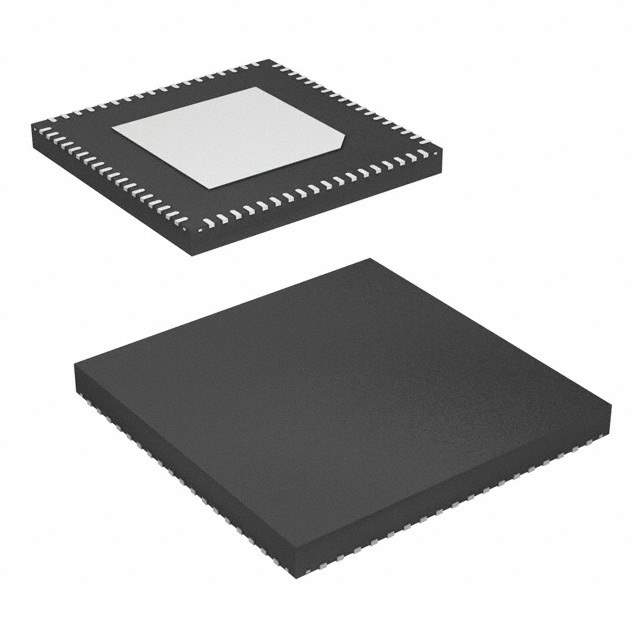

ADS54J40IRMP

Part No ADS54J40IRMP
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 14BIT PIPELINED 72VQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 5 Weeks
Features 14 Bit Analog to Digital Converter 2 Input 2 Pipelined 72-VQFN (10x10)
Manufacturer Texas Instruments
Package Tray
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 72-VFQFN Exposed Pad
Case / Package 72-VQFN (10x10)
Family Name ADS54J40
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A001A5A4
HTSUS 8542.39.0001
Other Part Number -296-43205-ND, 296-43205
Quantity per package 168
Popularity High
Supply and Demand Status Balance
Win Source Part Number 910857-ADS54J40IRMP
Ultra Librarian 3D Model Ultra Librarian ADS54J40IRMP CAD Model

Description

Texas Instruments ADS54J40IRMP Product Overview

The ADS54J40IRMP is a high-performance, dual-channel, 14-bit analog-to-digital converter (ADC) from Texas Instruments, designed to meet the rigorous demands of advanced radar systems, wireless communication equipment, and test and measurement applications. With its exceptional sampling rate of up to 1 GSPS (giga-samples per second), this ADC provides the precision and speed required for high-speed signal processing tasks.

Key Features and Benefits:

  • High-Speed Performance: The ADS54J40IRMP's sampling rate of 1 GSPS per channel allows for accurate digitization of high-frequency signals, making it an ideal choice for wide bandwidth applications.
  • Dual-Channel Operation: The dual ADC cores enable simultaneous sampling of two channels, which is critical for applications requiring channel matching and phase alignment such as MIMO (Multiple Input Multiple Output) systems.
  • High Resolution: With its 14-bit resolution, the device ensures fine quantization levels, resulting in high-quality signal representation and improved signal-to-noise ratio (SNR).
  • JESD204B Interface: The inclusion of the JESD204B high-speed serial interface provides a robust and high-speed data connection that simplifies board layout and reduces the number of data I/O lines required.
  • Integrated Digital Down Converter (DDC): The built-in DDC functionality supports digital decimation and filtering, which enhances the ADC's flexibility and makes it suitable for software-defined radio (SDR) and other digital signal processing (DSP) applications.
  • Programmable Gain: The device includes a programmable gain option that allows users to adjust the full-scale input range, thus optimizing the converter for different input signal amplitudes.
  • Power Efficiency: The ADS54J40IRMP is designed with power efficiency in mind, minimizing power consumption without compromising performance, critical for applications where power efficiency is paramount.

Applications:

  • Radar and Satellite Communication Systems
  • Wireless Infrastructure (Base Stations, MIMO)
  • Test and Measurement Equipment
  • Data Acquisition Systems
  • Software-Defined Radio (SDR)

In conclusion, the ADS54J40IRMP from Texas Instruments stands out as a versatile and high-performance ADC solution, capable of tackling the most demanding data conversion challenges in modern electronic systems.
