Product Overview: Texas Instruments ADS7038IRTET

The ADS7038IRTET from Texas Instruments is a state-of-the-art, 8-channel, multiplexed, 12-bit analog-to-digital converter (ADC) that offers exceptional performance in a compact form factor. This versatile ADC is designed to operate with a single power supply ranging from 2.7V to 5.5V, making it an ideal solution for a wide range of applications, including industrial automation, process control, and medical systems.

Key Features

• High Precision: With its 12-bit resolution, the ADS7038IRTET provides high-precision measurement capabilities, ensuring accurate data conversion for critical applications.
• Multi-Channel Flexibility: The device's 8-channel input allows for multiple signal acquisitions, reducing the need for additional components and simplifying system design.
• Fast Sampling Rate: Boasting a maximum sampling rate of 1MSPS (mega-samples per second), the ADC can handle high-speed signals without sacrificing accuracy or performance.
• Low Power Consumption: Designed with power efficiency in mind, the ADS7038IRTET is optimal for battery-powered or energy-sensitive applications.

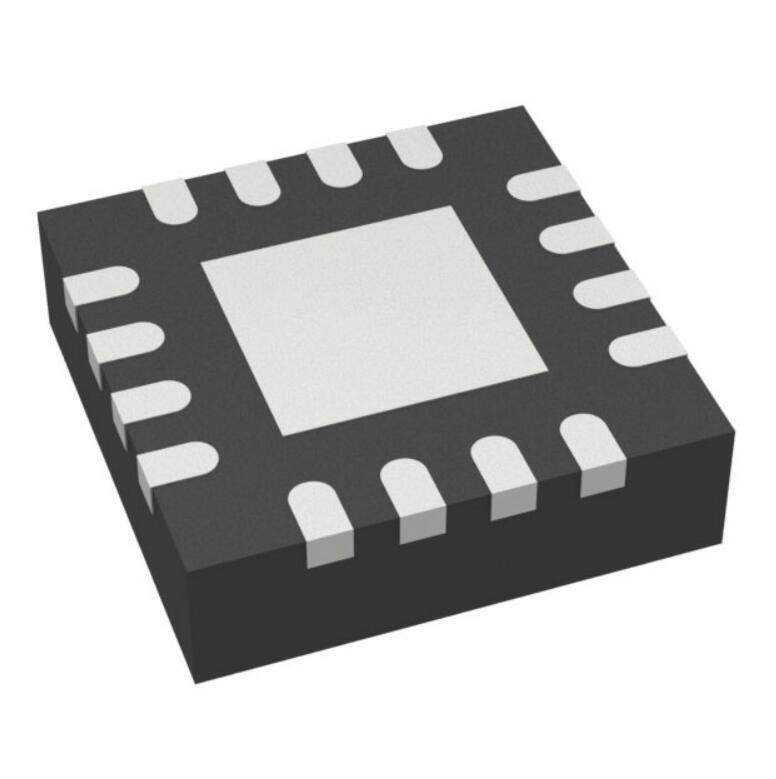

• Small Package: The device comes in a small WQFN-16 package, which is ideal for space-constrained applications.
• Integrated Features: It includes an internal reference and oscillator, which minimizes the need for external components and reduces overall system complexity.
• Interface Options: The ADC supports SPI and QSPI communication protocols, offering flexibility in interfacing with microcontrollers and digital systems.

Applications

The ADS7038IRTET is well-suited for a variety of applications, including:

• Industrial automation systems
• Data acquisition systems
• Portable instrumentation
• Battery monitoring systems
• Medical devices and equipment

With its robust feature set, the Texas Instruments ADS7038IRTET ADC is a versatile and reliable choice for designers seeking to enhance the performance and efficiency of their data conversion systems.
