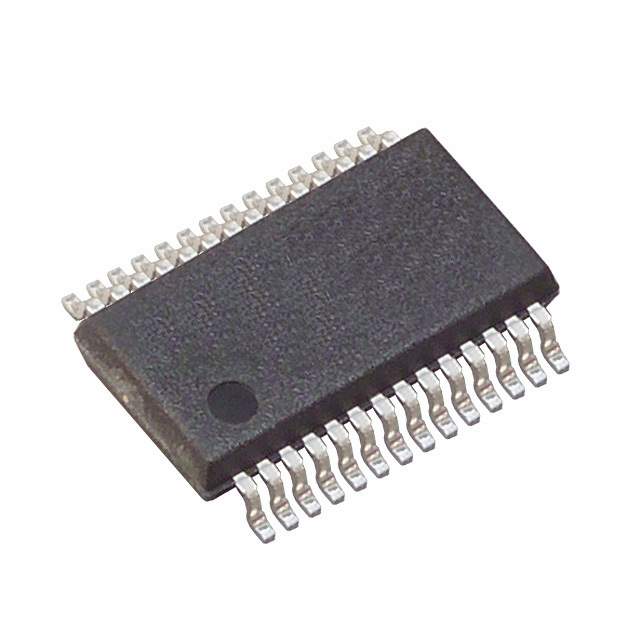

ADS8509IDB Real Image
Same model may have multiple batches, images only for reference.

ADS8509IDB

Part No ADS8509IDB
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 16BIT 250KSPS SRL 28-SSOP
Datasheet
ADS8509IDB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Number of Bits 16
Sampling Rate 250k
Number of Inputs 1
Input Type Single Ended
Data Interface SPI
Configuration S/H-ADC
Number of A/D Converters 1
Reference Type External, Internal
Analog Supply Voltage 5V
Digital Supply Voltage 5V
Temperature Range - Operating -40°C to 85°C
Case / Package 28-SSOP
Win Source Part Number 083073-ADS8509IDB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADS8509IDB CAD Model

Description

The ADS8509IDB is a versatile ADC known for its robust data conversion capabilities. Providing 16-bit resolution, it is designed to support a wide array of electronic applications with precision and reliability.

Features and Benefits

  • High-Resolution Output: 16-bit accuracy for precise data processing.
  • Wide Applicability: Suitable for diverse operating environments.
  • Durable Design: Built to withstand demanding conditions for extended reliability.

Applications

  • Automated Test Equipment
  • Communication Infrastructure
  • Environmental Monitoring Devices
  • Telecommunication Networks

The ADS8509IDB delivers consistently high-quality performance, making it an ideal choice for demanding engineering and industrial applications.
