Product Overview: Texas Instruments ADS8866IDGSR

The Texas Instruments ADS8866IDGSR is a high-performance, 16-bit analog-to-digital converter (ADC) that offers a compelling balance of speed, precision, and power efficiency. Designed for a wide array of applications, from medical instrumentation to industrial control systems, this ADC is a reliable choice for engineers looking to enhance their signal acquisition capabilities.

This ADC operates on a single 2.25V to 5.5V power supply, making it versatile for various power environments. The ADS8866IDGSR features an impressive sampling rate of up to 1 MSPS (mega samples per second), providing rapid data acquisition without sacrificing accuracy. This speed is particularly beneficial for applications that require real-time monitoring and control.

One of the standout features of the ADS8866IDGSR is its low-power consumption. The device offers a normal mode with a typical power consumption of only 7.5 mW at the full 1 MSPS rate, and a power-down mode that reduces the power consumption to as low as 1.5 µW, making it an optimal choice for battery-powered and energy-sensitive applications.

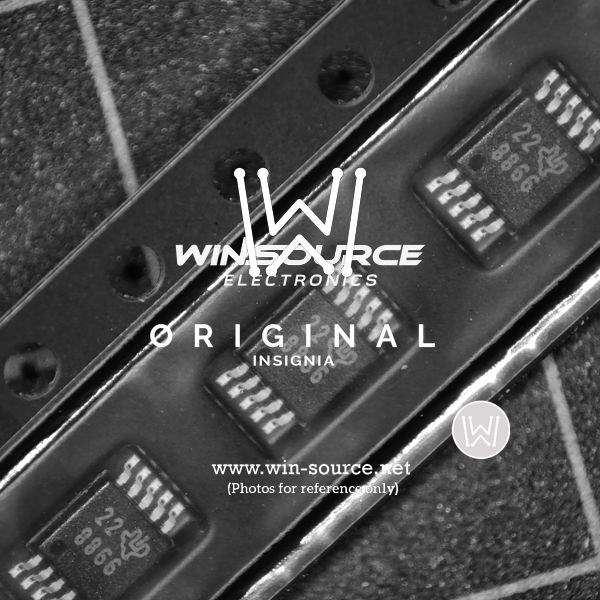

The ADS8866IDGSR comes in a compact VSSOP-10 (DGSR) package that is space-efficient, allowing for a smaller PCB footprint. Moreover, it includes an internal oscillator that eliminates the need for external clocking components, further simplifying design and reducing system costs.

For enhanced signal fidelity, the ADC features an input buffer that isolates the sample-and-hold circuit from the input, minimizing distortion and preserving signal integrity. Additionally, the device supports a pseudo-differential input that provides good common-mode rejection, which is critical in noisy environments.

Interfacing with microcontrollers or digital signal processors is straightforward, thanks to the ADS8866IDGSR's SPI-compatible serial interface. This interface ensures easy integration into existing digital systems, facilitating quick data transfer and efficient communication.

In summary, the Texas Instruments ADS8866IDGSR is a feature-rich ADC that offers excellent performance and is well-suited for applications demanding high-speed, precision data conversion with minimal power consumption.
