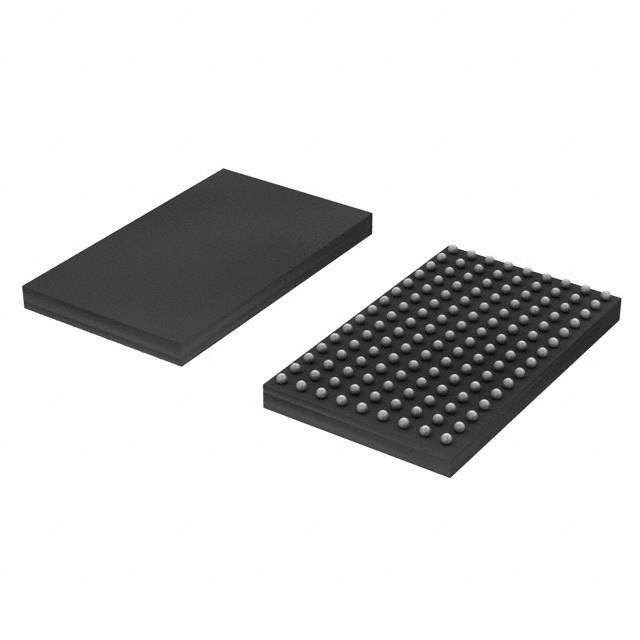

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Active
Number of Bits 14
Number of Channels 8
Power (Watts) 158mW
Analog Supply Voltage 1.7 V to 1.9 V, 3.15 V to 3.6 V, 5V
Digital Supply Voltage 1.7 V to 1.9 V
Case / Package 135-NFBGA (15x9)
Win Source Part Number 084472-AFE5809ZCF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AFE5809ZCF CAD Model

Description

The AFE5809ZCF is an all-in-one analog front-end tailored for sophisticated ultrasound applications, providing comprehensive integration and superior analytical capabilities. Its advanced feature set makes it an ideal choice for high-resolution and portable diagnostics.

Features and Benefits

  • Integrated Signal Processor: Streamlines data analysis for rapid diagnostics.
  • Compact Design: Offers flexibility for portable and compact devices.
  • Enhanced Signal Fidelity: Improves diagnostic accuracy with clearer images.

Applications

  • Portable Ultrasound Devices
  • High-Resolution Imaging Systems
  • Advanced Diagnostic Equipment
