The CC1101RTKRG3 is a highly integrated RF transceiver module designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This device is part of TI's CC1101 family, which is well-known for providing low-power wireless solutions to a wide range of applications.

Key Features

• Frequency Range: The CC1101RTKRG3 operates in the 300-348 MHz, 387-464 MHz, and 779-928 MHz ISM/SRD bands, making it a versatile choice for global RF communications.
• Modulation Formats: It supports various modulation formats, including 2-FSK, 4-FSK, GFSK, MSK, OOK, and ASK, providing flexibility in designing communication protocols.
• High Sensitivity: With a sensitivity of up to -116 dBm, this transceiver ensures reliable data reception even in environments with low signal strength.
• Low Current Consumption: The CC1101RTKRG3 is optimized for low-power applications, with a current consumption of only 15.6 mA in transmit mode (at +12 dBm) and 16.2 mA during reception.
• Data Rate: It supports data rates from 1.2 kBaud to 500 kBaud, catering to a range of data transmission needs.
• Integrated Components: The device includes an integrated analog-to-digital converter (ADC), temperature sensor, and battery voltage sensor, which help in reducing the external component count and system complexity.

Applications

The CC1101RTKRG3 is suitable for a variety of applications such as:

• Wireless sensor networks
• Home and building automation
• Industrial monitoring and control
• Smart metering
• Consumer electronics

Package and Quality

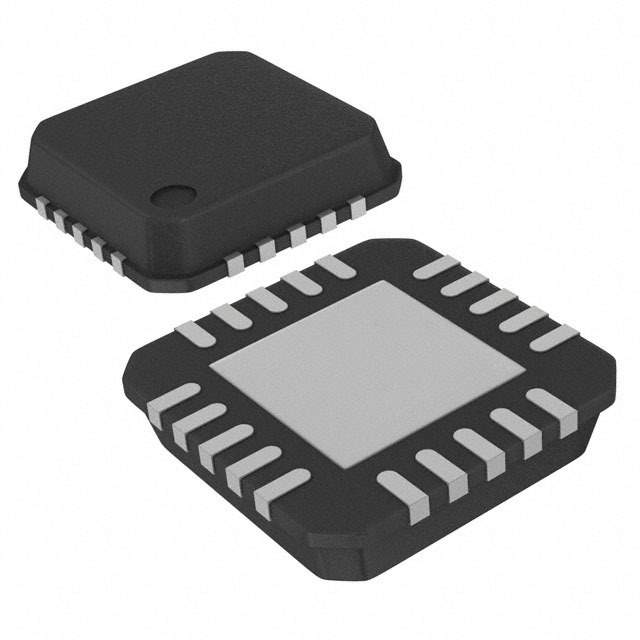

This device is offered in a QFN-20 package, which is compact and suitable for space-constrained applications. The CC1101RTKRG3 is also characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide range of temperature conditions. Texas Instruments' commitment to quality ensures that the CC1101RTKRG3 meets the highest standards for performance and reliability.

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments website or contact their support team.
