Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Tube
Type PLL Clock Driver
PLL Yes with Bypass
Input TTL
Output LVTTL
Number of Circuits 1
Frequency - Max 100MHz
Divider/Multiplier Yes/Yes
Operating Supply Voltage 3 V ~ 3.6 V
Operating Temperature Range 0°C ~ 70°C
Mounting SMD
Package 28-SSOP (0.209", 5.30mm Width)
Manufacturer Package 28-SSOP
Win Source Part Number 1160586-CDC536DB
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Balance
Family Name CDC536
Introduction Date February 15, 2004
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CDC536DB CAD Model

Description

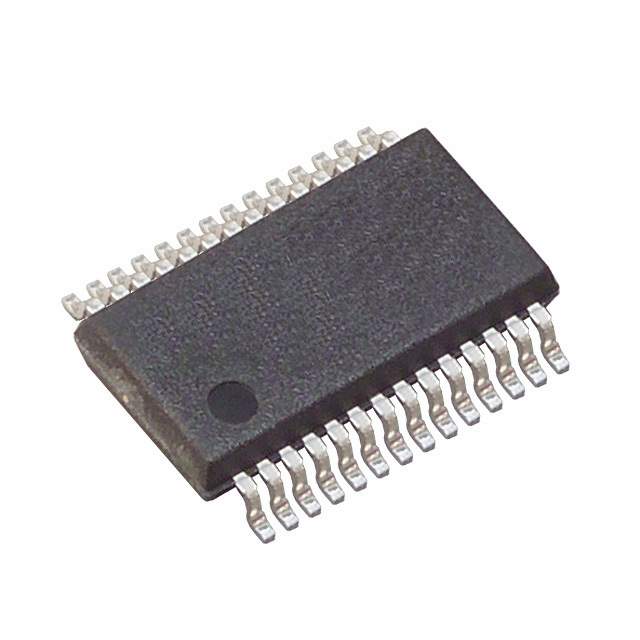

The Texas Instruments CDC536DB is a high-performance, phase-lock loop (PLL) clock driver designed to meet the demanding needs of synchronous memory systems and other high-speed digital circuits. This integrated circuit is engineered to provide precise clock distribution and frequency synthesis for computer and telecommunications systems.

With its ability to generate multiple output clocks from a single input frequency, the CDC536DB is a versatile solution that can reduce the number of clock generators required in a system. This not only simplifies design but also helps in reducing overall system cost and power consumption.

Key Features:

  • Multiple Outputs: The device offers several outputs that can be programmed to different frequencies, allowing for flexibility in system design.
  • Low Skew: It provides low clock skew between outputs, which is crucial for maintaining data integrity in high-speed communication.
  • Programmable: Users can program the PLL and output frequency dividers through a serial or parallel interface, enabling easy integration into various system architectures.
  • Wide Frequency Range: The device supports a broad range of input frequencies, making it suitable for a wide array of applications.
  • Power Efficiency: Texas Instruments has optimized the CDC536DB for low power consumption, which is essential for portable and power-sensitive applications.

The CDC536DB is available in a compact package, which is ideal for space-constrained applications. Its robust design ensures reliable operation under varying conditions, making it a preferred choice for designers looking to enhance the performance and stability of their clock distribution networks.

Whether you are working on the next generation of computing platforms, advanced communication systems, or high-speed digital signal processing, the Texas Instruments CDC536DB offers the performance and features necessary to achieve a high-quality, reliable end product.
