Introducing the CSD15571Q2 NexFET™ Power MOSFET from Texas Instruments

The CSD15571Q2 is a state-of-the-art power MOSFET designed and manufactured by Texas Instruments, renowned for their innovative approach in semiconductor solutions. This high-performance MOSFET is part of TI's NexFET™ product line, which is acclaimed for delivering high power density and energy efficiency in a compact form factor.

Key Features:

• Ultra-Low On-Resistance: The CSD15571Q2 boasts an exceptionally low on-resistance (R<sub>DS(on)) of just 5.9 mΩ at V<sub>GS = 10V, which translates to reduced conduction losses and improved overall efficiency.

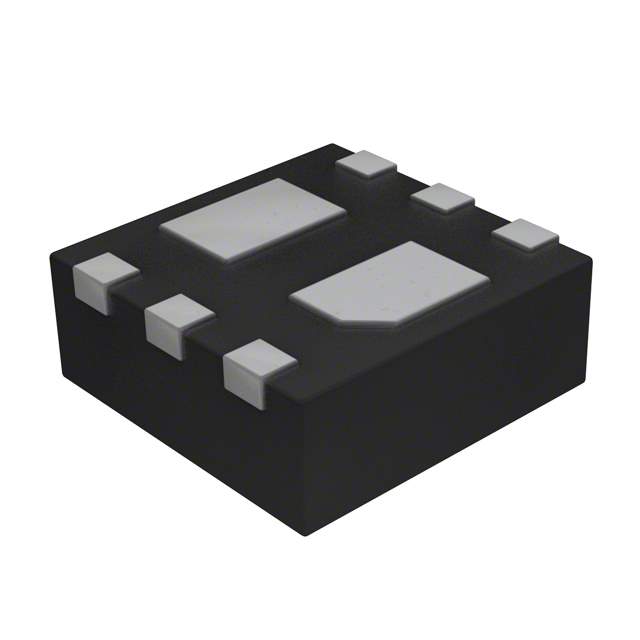

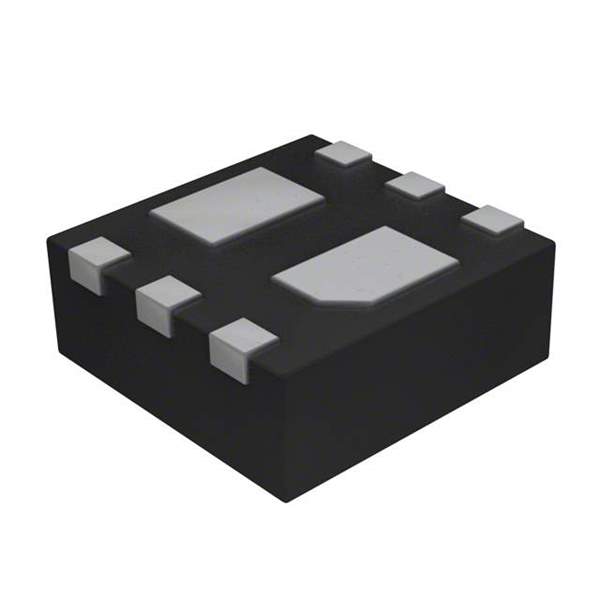

• Advanced Power Packaging: Encased in a 3mm x 3mm SON package with a PowerPAD™, this MOSFET ensures excellent thermal management, making it suitable for high-density power designs.
• High Continuous Drain Current: It supports a robust continuous drain current (I<sub>D) of 25 A, enabling it to handle high current applications with ease.
• Optimized Gate Charge: The device features a low total gate charge (Q<sub>g), which minimizes switching losses and allows for faster switching speeds, beneficial in applications like DC/DC converters.

Applications:

The versatility of the CSD15571Q2 makes it ideal for a wide range of applications, including:

• DC/DC Conversion
• Motor Drives
• Power Supply Systems
• Battery Management Systems
• Load Switches

Reliability and Performance:

Designed with reliability in mind, the CSD15571Q2 meets the rigorous standards set by Texas Instruments. Its performance is characterized by fast switching speeds, low on-resistance, and excellent thermal properties, ensuring long-term reliability and consistent operation under various conditions.

Integrating the CSD15571Q2 into your power management designs will not only enhance efficiency but also contribute to the miniaturization of your electronic systems without compromising on power or performance. With Texas Instruments' commitment to quality, this MOSFET is a testament to their leadership in power management technology.

For detailed specifications, application notes, and support resources, visit the Texas Instruments website to ensure you harness the full potential of the CSD15571Q2 NexFET™ Power MOSFET in your next project.
