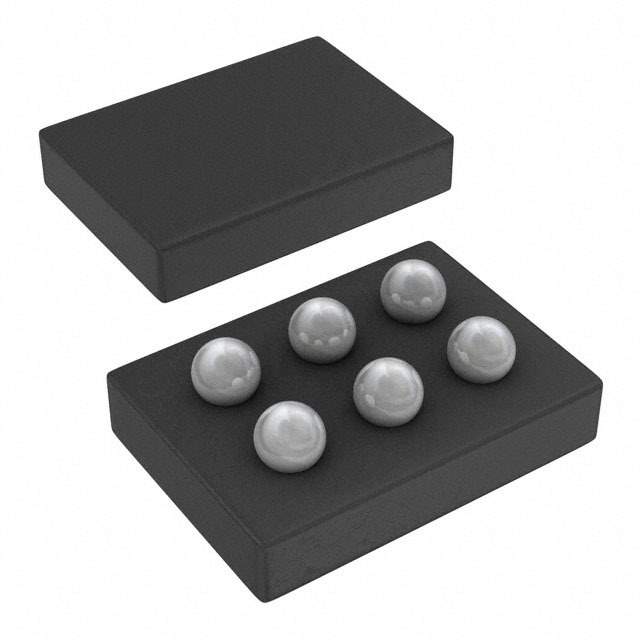

CSD75205W1015 Real Image
Same model may have multiple batches, images only for reference.

CSD75205W1015

Part No CSD75205W1015
Manufacturer Texas Instruments
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 20V 1.2A 6DSBGA
Datasheet
CSD75205W1015 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 1.2A
Maximum Rds On at Id,Vgs 120 mOhm @ 1A, 4.5V
Gate-Source Threshold Voltage 850mV @ 250μA
Max Gate Charge 2.2nC @ 4.5V
Max Input Capacitance 265pF @ 10V
Maximum Power Dissipation 750mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-DSBGA (1x1.5)
Win Source Part Number 121289-CSD75205W1015
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CSD75205W1015 CAD Model

Description

Product Overview

The CSD75205W1015 is designed for advanced switching and power regulation tasks, delivering reliable performance even in the most demanding electronic environments.

Features and Benefits

  • Low RDS(on) for efficient current conduction
  • High frequency operation capability
  • Thermally enhanced package
  • Long-term reliability in industrial use

Applications

  • Automotive power systems
  • High-efficiency server farms
  • Solar inverter systems

This MOSFET is an excellent option for improving the power efficiency and reliability of complex electronic systems.
