Product Overview: CY74FCT16543CTPVCT from Texas Instruments

The CY74FCT16543CTPVCT is a high-performance, integrated circuit designed and manufactured by Texas Instruments, a leader in the semiconductor industry. This device is part of the FCT (Fast CMOS TTL-Compatible) family and is specifically tailored for high-speed digital applications that require low power consumption and high noise immunity.

Key Features

• Technology: The CY74FCT16543CTPVCT is built on advanced CMOS technology, ensuring low power dissipation and high-speed operation.
• Logic Type: It is a 16-bit registered transceiver featuring dual enable functions for improved control and flexibility in data transmission.
• Performance: This IC has a typical propagation delay time of 5.5ns, ensuring fast data transfer rates suitable for high-performance computing and data communication systems.
• Operating Voltage: It operates within a voltage range of 4.5V to 5.5V, making it compatible with TTL logic levels and allowing for easy integration into existing systems.
• I/O Capacitance: The transceiver offers a low input/output capacitance, which reduces loading on the data lines and minimizes signal distortion.

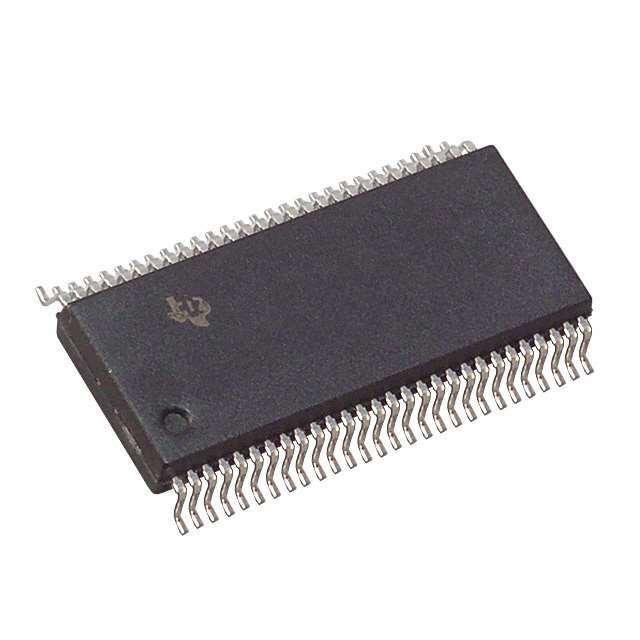

• Package: The device is housed in a 56-Pin SSOP (Shrink Small Outline Package), providing a compact footprint that is beneficial for space-constrained applications.
• Temperature Range: It is designed to operate over an extended industrial temperature range, from -40°C to +85°C, ensuring reliability in harsh environmental conditions.

Applications

The CY74FCT16543CTPVCT is ideal for use in a variety of digital systems, including:

• High-speed data acquisition systems
• Telecommunications equipment
• Networking hardware such as routers and switches
• Computer motherboards and peripheral devices
• Industrial control and automation systems

This transceiver from Texas Instruments is a robust solution for designers looking to enhance the performance and efficiency of their digital systems. Its combination of speed, power efficiency, and noise immunity makes the CY74FCT16543CTPVCT a versatile and reliable component for a wide array of electronic applications.
