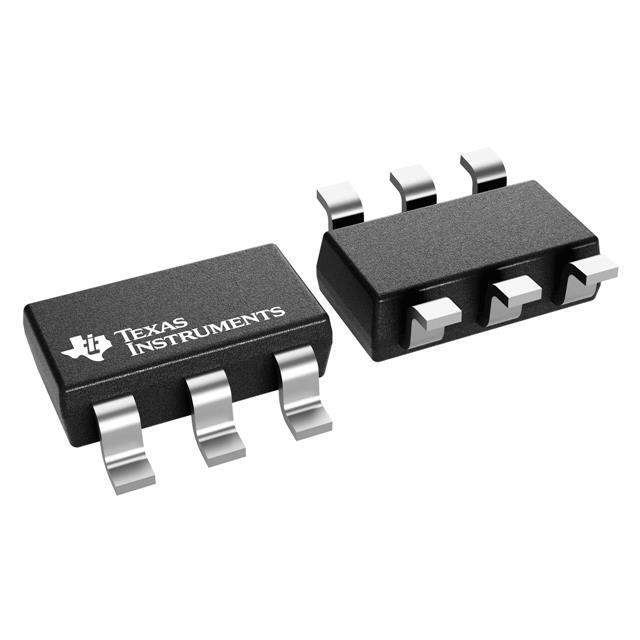

DAC121S101CIMK/NOPB Real Image
Same model may have multiple batches, images only for reference.

DAC121S101CIMK/NOPB

Part No DAC121S101CIMK/NOPB
Manufacturer Texas Instruments
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description CONV D/A 12BIT MICROPWR 6SOT
Datasheet
DAC121S101CIMK/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Number of Bits 12
Number of D/A Converters 1
Settling Time 10μs
Output Type Voltage - Buffered
Differential Output No
Data Interface SPI, DSP
Reference Type Supply
Analog Supply Voltage 2.7 V to 5.5 V
Digital Supply Voltage 2.7 V to 5.5 V
INL/DNL (LSB) ±8 (Max), ±0.5/+1 (Max)
Temperature Range - Operating -40°C to 105°C
Case / Package TSOT-23-6
Win Source Part Number 128696-DAC121S101CIMK/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Automation & Process Control, Portable Devices, Sensing & Instrumentation
Family Name DAC121S101
Introduction Date June 17, 2005
ECCN 3A991.c.2
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian DAC121S101CIMK/NOPB CAD Model

Description

Overview of DAC121S101CIMK/NOPB

The DAC121S101CIMK/NOPB is a single-channel, digital-to-analog converter with a 12-bit resolution. It provides a simple and accurate way to convert digital data into an analog signal, making it suitable for a wide range of applications.

Features and Benefits

  • 12-bit resolution providing precise analog output.
  • Low power consumption ideal for battery-powered devices.
  • Wide operating temperature range for versatility in different environments.
  • Simple 3-wire interface for easy integration.

Applications

  • Data acquisition systems
  • Portable medical devices
  • Signal generation
  • Industrial process control

The DAC121S101CIMK/NOPB offers an efficient solution for converting digital signals into analog, providing reliability in various electronics projects.
