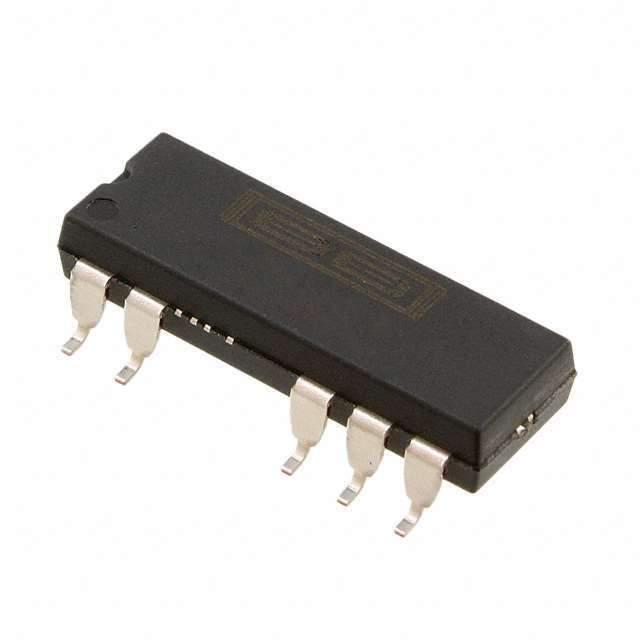

Product Overview: DCP011515DBP-U/700 by Texas Instruments

The DCP011515DBP-U/700 from Texas Instruments is a highly efficient, isolated, unregulated DC-DC converter module that is an integral part of power management solutions. This compact power module is designed to offer both galvanic isolation and a reliable power conversion for a wide range of applications, making it an ideal choice for designers looking to enhance the safety and performance of their systems.

Key Features

• Isolation: The DCP011515DBP-U/700 provides 1500 Vrms of isolation, ensuring that the input and output are electrically separated, which is critical for safety in sensitive electronic applications.
• Power Output: It delivers a fixed output power of 1 Watt, suitable for small-scale operations in various electronic devices.
• Input Voltage Range: The device accepts an input voltage range of 10.8 V to 13.2 V, making it versatile for different input conditions.
• Output Voltage: This model specifically provides a dual output of ±15 V, which is essential for applications requiring a balanced supply.
• Package: It comes in a compact and robust 7-pin DIP module, which is easy to integrate into a variety of PCB layouts.
• Efficiency: The DCP011515DBP-U/700 is designed for high efficiency, which helps in reducing power loss and heat generation within the system.

Applications

The versatility and performance of the DCP011515DBP-U/700 make it suitable for a wide range of applications, including:

• Industrial control systems
• Isolated sensor interfaces
• Test and measurement equipment
• Medical equipment
• Data acquisition systems
• Telecommunications devices

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the DCP011515DBP-U/700 is no exception. It is built with high-quality materials and has undergone rigorous testing to meet industry standards. This ensures that the product you receive is reliable and capable of performing consistently over a wide range of environmental conditions.
