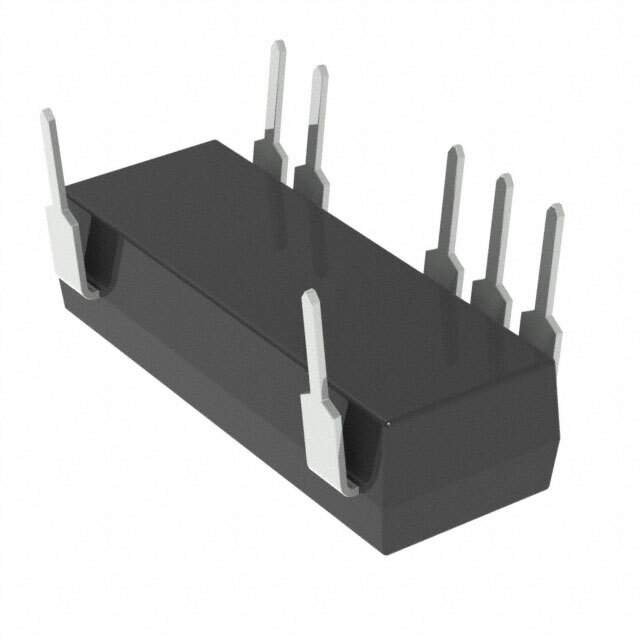

DCP012405BP Real Image
Same model may have multiple batches, images only for reference.

DCP012405BP

Part No DCP012405BP
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 5V 20MA 7DIP
Datasheet
DCP012405BP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCP01B
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP, SCP
Mounting Style Through Hole
Package 14-DIP (0.300", 7.62mm) (7 Leads)
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 100°C
Efficiency 77%
Power (Watts) - Max 70mW
Win Source Part Number 013853-DCP012405BP
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCP012405BP CAD Model

Description

Overview of DCP012405BP

The DCP012405BP is a versatile DC-DC converter designed to provide seamless power solutions for a range of electronic devices. Known for its robust construction and efficient performance, it is a popular choice in many sectors.

Features and Benefits

  • Wide Input Voltage Range: Accommodates multiple input sources, facilitating integration in diverse systems.
  • High Efficiency: Maximizes energy conservation and minimizes operational costs.
  • Compact Size: Allows for flexible installation and efficient use of space.
  • Stable Output: Provides dependable power delivery for sensitive electronic components.

Applications

  • Renewable Energy Systems
  • Medical Instruments
  • Networking Equipment
  • Automotive Electronics

Additional Information

The DCP012405BP converter is engineered for high reliability and efficiency, making it suitable for critical projects and applications. It adheres to rigorous industry standards, ensuring safety and compliance.
