Same model may have multiple batches, images only for reference.

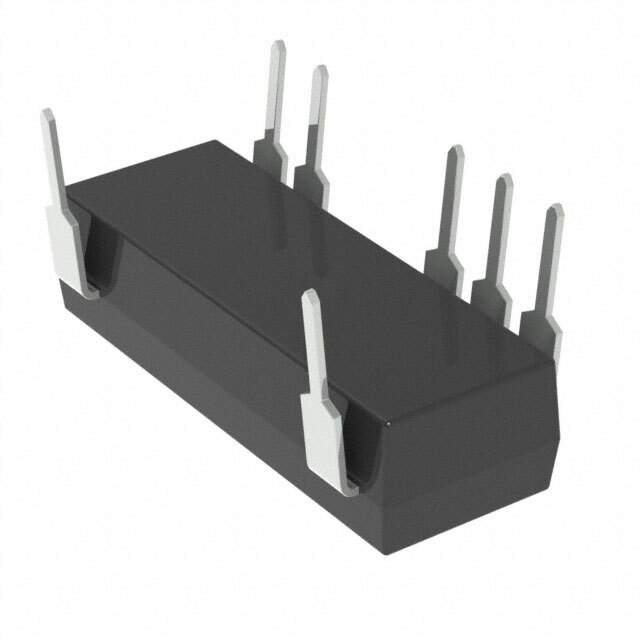

DCP021212P Real Image
Same model may have multiple batches, images only for reference.

DCP021212P

Part No DCP021212P
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 12V 167MA 7DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series DCP02
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Current - Output (Max) 167mA
Power (Watts) - Manufacture Series 2W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP
Mounting Style Through Hole
Package 14-DIP (0.300" 7.62mm) (7 Leads)
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 87%
Power (Watts) - Max 180mW
Catalog DCP02 Series
Win Source Part Number 080369-DCP021212P
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCP021212P CAD Model

Description

DCP021212P Isolated DC-DC Converter

The DCP021212P is an isolated DC-DC converter providing 1W of power with superior electrical isolation, optimizing power distribution systems and enhancing system reliability. Its robust design is ideally suited for industrial and telecommunications applications.

Features and Benefits

  • Offers 1W power output, ideal for small, isolated power systems.
  • Features 1500V isolation, ensuring operational safety and compliance.
  • Available in an industry-standard DIP package, facilitating straightforward PCB mounting.
  • Reliable across wide temperature ranges for challenging environments.

Applications

  • Telecommunications setups
  • Power supply units
  • Embedded systems
  • Measurement equipment

The DCP021212P delivers reliable performance with enhanced isolation, making it essential for power supply design.
