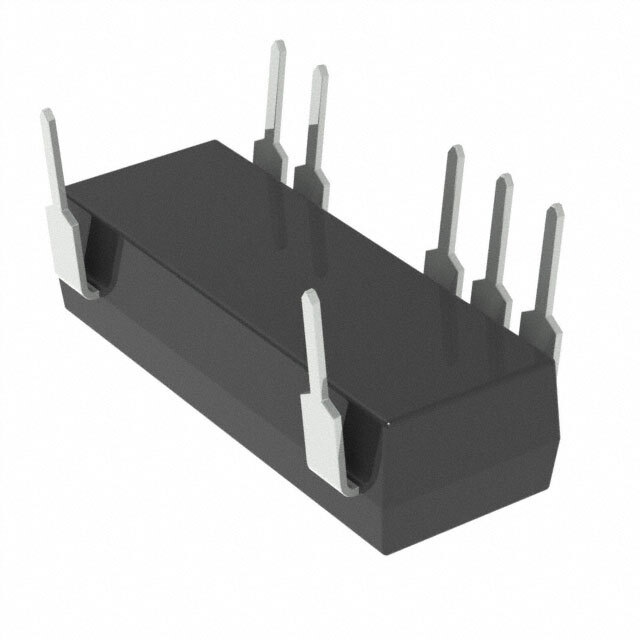

Same model may have multiple batches, images only for reference.
DCPA10505DP Texas Instruments – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DCPA10505DP

Part No DCPA10505DP
Manufacturer Texas Instruments
Catalog Board Mount AC DC Converters
Description DC DC CONVERTER +/-5V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board MountDC DC Converters
Mfr Texas Instruments
Series DCPA1 (1W)
Packaging Tube
Part Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 2 kV
Applications ITE (Commercial)
Operating Temperature -40°C ~ 100°C
Efficiency 85%
Mounting Type Through Hole
Package / Case 14-DIP (0.300", 7.62mm), 7 Leads
Size / Dimension 0.76" L x 0.26" W x 0.21" H (19.2mm x 6.6mm x 5.3mm)
Supplier Device Package 7-PDIP
Base Product Number DCPA10505
Ultra Librarian 3D Model Ultra Librarian DCPA10505DP CAD Model
