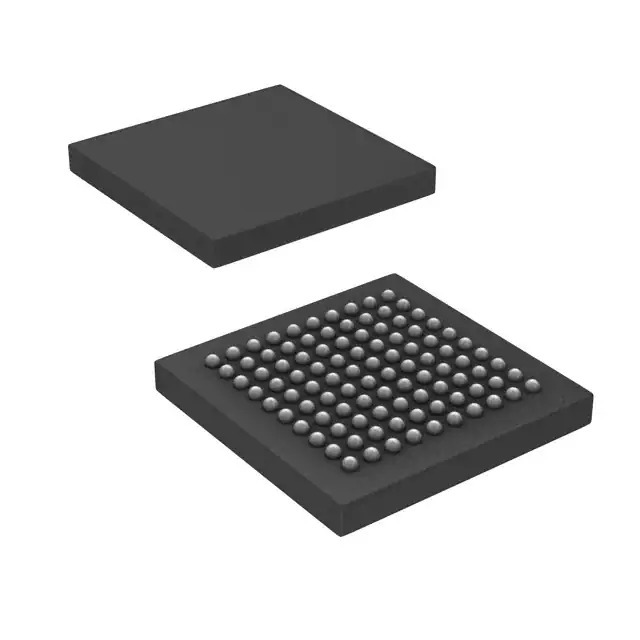

The Texas Instruments DDC264CZAWR is a high-performance, 20-bit, analog-to-digital converter (ADC) designed for precision CCD (Charge-Coupled Device) imaging applications. This sophisticated component is an ideal solution for a wide range of imaging technologies, particularly in the medical and industrial sectors, where high resolution and accuracy are paramount.

Key Features

• High-Resolution ADC: With its 20-bit resolution, the DDC264CZAWR delivers exceptionally detailed digital outputs, ensuring that every nuance of the analog input is captured with precision.
• Integrated Noise Reduction: The device comes with an integrated Correlated Double Sampling (CDS) circuit, which significantly reduces the system noise and improves the signal-to-noise ratio, essential for high-quality imaging.
• High Channel Count: This ADC supports up to 64 channels, making it highly suitable for multi-channel CCD applications. It allows for simultaneous data acquisition from multiple sensors, streamlining the imaging process.
• Low Power Consumption: Designed with power efficiency in mind, the DDC264CZAWR operates with low power requirements, which is crucial for portable and battery-powered devices.
• Flexible Interface: The device offers a flexible digital interface that is compatible with various microcontrollers and digital signal processors, facilitating easy integration into existing systems.

Applications

The DDC264CZAWR is particularly well-suited for applications such as:

• Medical imaging systems (e.g., X-ray, CT scans, and MRI)
• Scientific instrumentation
• Industrial process control
• High-definition CCD cameras

Technical Specifications

With its robust feature set and strong performance, the Texas Instruments DDC264CZAWR ADC is a standout choice for developers and engineers looking to enhance their imaging solutions with high-quality data conversion.
