The DP83848YBX is a robust, feature-rich physical layer transceiver from Texas Instruments, designed for precision implementation of the Ethernet protocol. This transceiver is specifically tailored for 10BASE-T and 100BASE-TX signaling, enabling it to handle network speeds of 10Mbps and 100Mbps respectively. It's an ideal solution for adding network connectivity to a wide range of industrial, consumer, and computing applications.

Key Features

• Flexible Interface: The device supports MII (Media Independent Interface), RMII (Reduced Media Independent Interface), and optional SMII (Serial Media Independent Interface), providing versatile options for interfacing with network processors and microcontrollers.
• Auto-MDIX: With the automatic MDI/MDIX crossover, the DP83848YBX eliminates the need for crossover cables, simplifying network installation and maintenance.
• Energy Efficient: The transceiver incorporates energy-efficient features that reduce power consumption during periods of low data activity, making it suitable for power-sensitive applications.
• Robust Performance: It is designed to withstand harsh industrial environments and includes features such as 25-MHz clock out, cable diagnostics, and signal quality monitoring.
• Integrated IEEE 802.3u Auto-Negotiation: This feature enables automatic determination of the maximum data rate and duplex mode, ensuring optimal link configuration and compatibility with other network devices.

Applications

The DP83848YBX is a versatile component that can be integrated into a variety of network-enabled devices. Its applications include:

• Embedded systems
• Industrial automation
• Building management systems
• Networked printers and scanners
• Home networking equipment

Technical Specifications

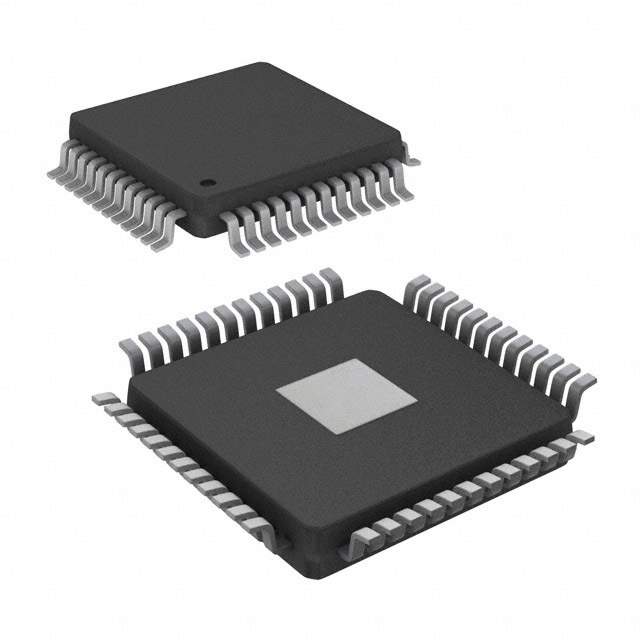

The DP83848YBX operates over a commercial temperature range and comes in a compact 48-pin LQFP (Low-Profile Quad Flat Package) that is RoHS compliant. It features a single 3.3V power supply with 5V tolerant I/Os, and an integrated 1.8V regulator for core operation, minimizing external component requirements.

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments website and refer to the DP83848YBX product page.
