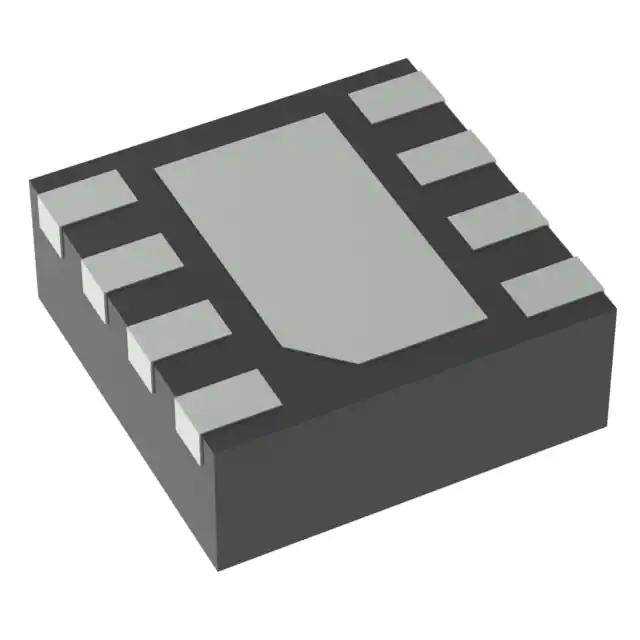

The DRV8231ADSGR is a state-of-the-art motor driver from Texas Instruments, designed to deliver high performance, reliability, and efficiency for a wide range of motor control applications. This compact, integrated circuit is part of TI's reputable DRV motor driver series, offering a comprehensive solution for driving brushed DC motors with advanced features and a robust design.

Key Features

• Output Current: The DRV8231ADSGR can support a continuous output current up to 3.5A, making it suitable for a variety of mid-sized motors.
• Operating Voltage Range: It operates over a wide supply voltage range from 6.5V to 45V, providing flexibility for use in multiple voltage systems.
• Integrated Protection: The device includes multiple protection features such as overcurrent, overtemperature, and undervoltage lockout, ensuring safe operation under various conditions.
• PWM Control: With PWM control interface, the motor speed can be precisely controlled, allowing for smooth acceleration and deceleration.
• Low RDS(ON): The low on-resistance of the H-bridge (High-Side + Low-Side) minimizes power dissipation and improves overall efficiency.
• Diagnostic Outputs: Diagnostic outputs are available for fault indication, which is critical for system monitoring and maintenance.

Applications

The DRV8231ADSGR is versatile and can be employed in a multitude of applications including, but not limited to:

• Office Automation Machines
• Home Appliances
• Factory Automation and Robotics
• Battery-Powered Toys and Tools

Quality and Reliability

As with all Texas Instruments products, the DRV8231ADSGR is manufactured to the highest quality standards, ensuring reliable performance in even the most demanding environments. Its thermal performance is optimized with a PowerPAD™ package that significantly enhances heat dissipation.

For designers and engineers looking for a robust and efficient motor driver solution, the DRV8231ADSGR from Texas Instruments is an excellent choice that balances performance with ease of use, backed by TI's extensive support and resources.
