Product Overview: Texas Instruments DRV8301QDCARQ1

The DRV8301QDCARQ1 is a state-of-the-art motor driver from Texas Instruments, designed to deliver robust, high-performance control for three-phase brushless DC (BLDC) motors. This advanced motor driver is particularly well-suited for automotive applications, complying with stringent quality standards and ensuring reliable operation in demanding environments.

Key Features

• Integrated Gate Drivers: The device includes three half-bridge drivers, capable of driving six N-type MOSFETs, which are essential for creating the three-phase output required for BLDC motors.
• Buck Regulator: An integrated buck regulator provides a 1.5A output, which can be used to power both the gate drivers and external system components.
• Current Sense Amplifiers: Two bidirectional current sense amplifiers with adjustable gain settings facilitate precise current measurement, crucial for advanced motor control algorithms.
• Protection Features: The DRV8301QDCARQ1 includes overcurrent protection, thermal warning and shutdown, undervoltage lockout, and fault indication, offering a high degree of safety and reliability.
• Automotive Qualified: As a Q1 device, it meets the rigorous automotive qualification standards, ensuring operation in extreme conditions ranging from -40°C to 150°C.

Applications

The versatility and robustness of the DRV8301QDCARQ1 make it an ideal choice for a wide range of automotive applications. These include electric power steering, pumps, fans, and any other automotive application requiring precise and efficient motor control.

Technical Specifications

• Supply Voltage Range: 6V to 60V
• Output Current: Up to 2.3A (Gate Drive)
• Operating Temperature Range: -40°C to 150°C

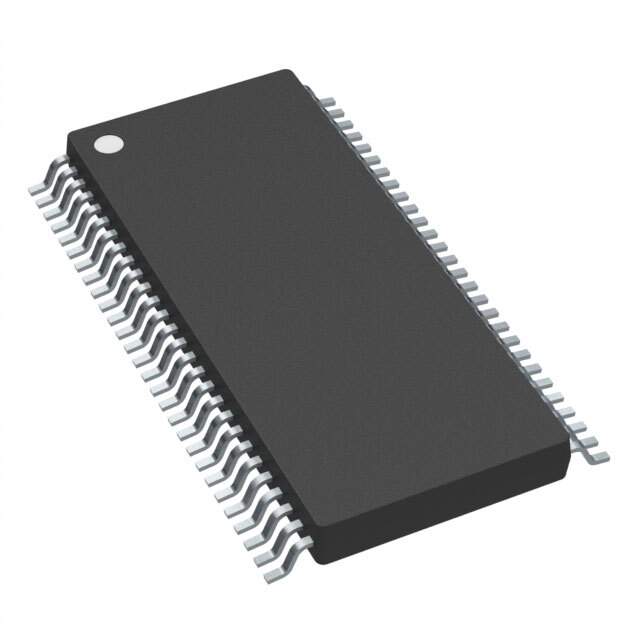

• Package: 48-Pin HTSSOP (QDC)

With its advanced features and compliance with automotive standards, the DRV8301QDCARQ1 from Texas Instruments represents a reliable and efficient solution for designers seeking to enhance the performance and safety of their motor-driven automotive systems.
