The DRV8821DCA from Texas Instruments is a versatile dual H-bridge motor driver designed to efficiently drive two DC motors or one stepper motor. With its advanced features and robust performance, it is an ideal solution for a wide range of applications including printers, scanners, office automation machines, gaming machines, factory automation, robotics, and other industrial equipment.

Key Features

• Motor Type Support: Capable of driving two DC motors or one bipolar stepper motor.
• Output Current: Up to 1.6 A per channel or 3.2 A peak with proper heat sinking.
• Operating Voltage: Works efficiently with a power supply range from 8.2 V to 45 V, making it versatile for various applications.
• Integrated Protection: Features overcurrent, thermal shutdown, and undervoltage lockout protection for enhanced safety and reliability.
• Control Interface: Simple PWM interface for easy control and integration into systems.
• Microstepping Support: Offers up to 1/8 microstep resolution for stepper motors, providing precise motion control.

Performance and Flexibility

The DRV8821DCA is designed for performance and flexibility. It supports fast decay mode, which is beneficial for reducing power consumption and heat generation. Additionally, the device's low on-resistance reduces power dissipation, increasing efficiency and reliability.

Package and Quality

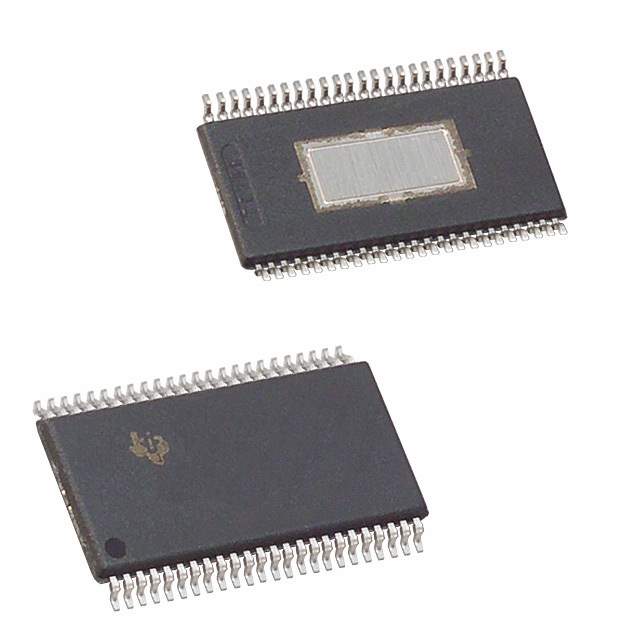

This motor driver comes in a HTSSOP package with PowerPAD™ for excellent thermal performance. The DRV8821DCA is also RoHS compliant and is designed to meet the rigorous quality standards set by Texas Instruments, ensuring a reliable solution for your motor driving needs.

Design Resources

Texas Instruments offers a range of design resources to assist in the implementation of the DRV8821DCA, including datasheets, design tools, and technical support. These resources are intended to streamline the design process and help achieve optimal system performance.
