Product Overview: DS90C363MTDX/NOPB

The DS90C363MTDX/NOPB is a high-performance serializer/deserializer (SerDes) chip from Texas Instruments, designed to address the needs of high-speed data communication in a compact and efficient package. This versatile chip is an excellent choice for applications requiring the transmission of high-speed data over a low-cost, unshielded twisted pair (UTP) or a shielded twisted pair (STP).

Key Features

• High-Speed Data Transmission: Capable of converting parallel LVCMOS/LVTTL data inputs into LVDS (Low Voltage Differential Signaling) data streams, the DS90C363MTDX/NOPB can achieve a data rate of up to 135 MHz, which is equivalent to a throughput of 1.8 Gbps (gigabits per second).
• Reduced EMI: The LVDS technology used in the chip helps to minimize electromagnetic interference (EMI), a critical feature for maintaining signal integrity in noisy environments.
• Power Efficiency: With its low power consumption, the DS90C363MTDX/NOPB is designed for power-sensitive applications, contributing to overall system power efficiency.
• Compatibility: The chip supports a wide range of video resolutions and is compatible with industry-standard graphics resolutions, making it suitable for a variety of display applications.
• Programmable Edge Rates: The device offers programmable edge rates for the LVDS outputs, providing flexibility to optimize the signal integrity as per the application's requirements.

Applications

The DS90C363MTDX/NOPB is ideal for a variety of applications that require high-speed data transfer and reliable performance, such as:

• LCD display panels
• Industrial cameras
• Medical imaging devices
• Automotive infotainment and navigation systems
• High-definition video equipment

Quality and Reliability

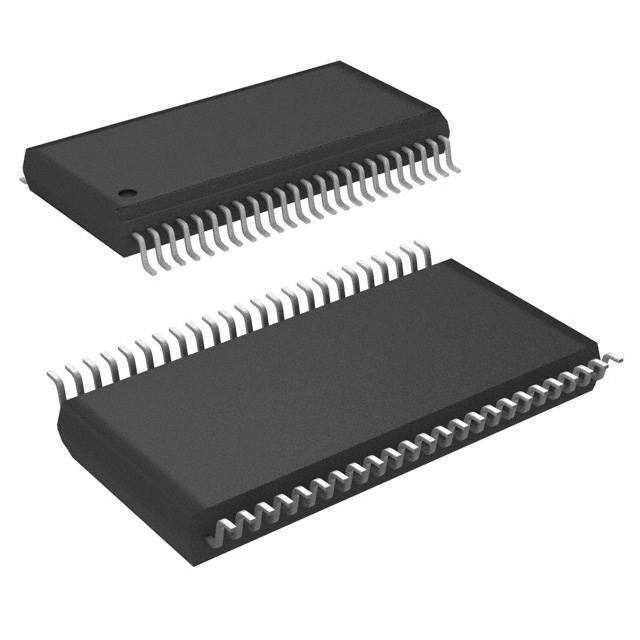

Texas Instruments is known for its commitment to quality and reliability, and the DS90C363MTDX/NOPB is no exception. It is available in a compact TSSOP (Thin Shrink Small Outline Package) footprint, which is RoHS compliant and designed for easy integration into a wide range of electronic systems. The 'NOPB' suffix indicates that the product is lead-free and environmentally friendly, adhering to the latest industry standards for electronic components.

Overall, the DS90C363MTDX/NOPB from Texas Instruments is a robust and reliable solution for systems designers looking to implement high-speed data communication with minimal interference and power consumption.
