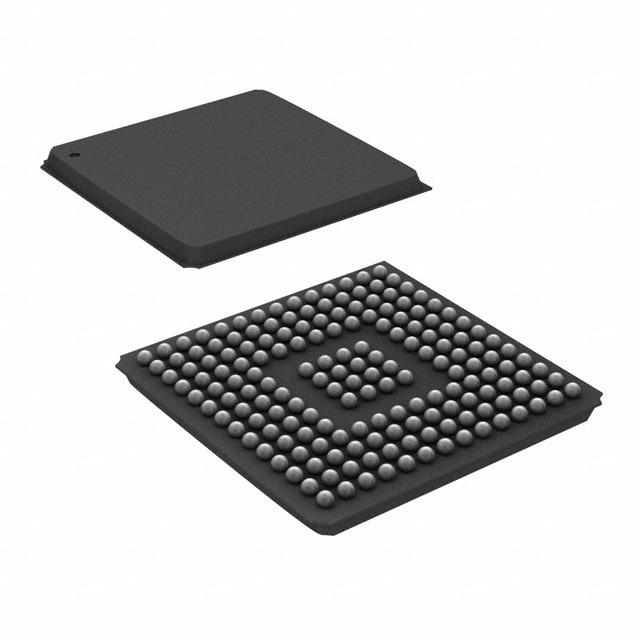

Same model may have multiple batches, images only for reference.
GC4116-PB Texas Instruments
Same model may have multiple batches, images only for reference.

GC4116-PB

Part No GC4116-PB
Manufacturer Texas Instruments
Catalog RF Misc ICs and Modules
Description IC UPCONVERTER DIG QUAD 160BGA / RF IC Upconverter CDMA, QPSK, W-CDMA 160-BGA (15x15)
Datasheet
GC4116-PB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Misc ICs and Modules
Mfr Texas Instruments
Package Tray
Product Status Obsolete
Function Upconverter
RF Type CDMA, QPSK, W-CDMA
Mounting Type Surface Mount
Package / Case 160-BGA
Supplier Device Package 160-BGA (15x15)
Base Product Number GC4116
Standard Package 126 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A991G
HTSUS 8542.39.0001
Win Source Part Number 136055-GC4116-PB
Ultra Librarian 3D Model Ultra Librarian GC4116-PB CAD Model

Description

The GC4116-PB from Texas Instruments is a highly advanced digital down converter (DDC) designed for a wide range of applications, including cellular base stations, radar systems, and software-defined radios.

  • Channels: Four-channel, multi-mode, high-performance
  • Dynamic Range: High dynamic range for signal clarity
  • Operating Speed: Up to 100 MSPS (Mega Samples Per Second)
  • Architecture: Flexible, supports single and multi-carrier modes
  • Power Efficiency: Minimal power consumption
  • Interface: Parallel LVCMOS and JESD204B
