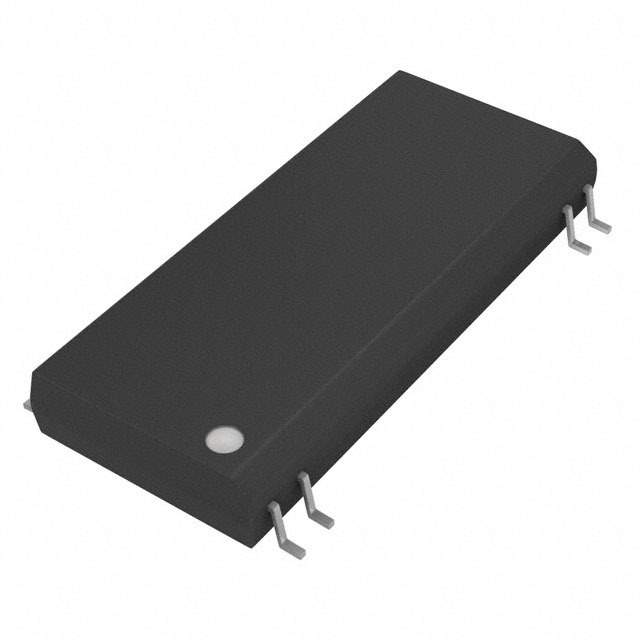

ISO122U

Part No ISO122U
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description Precision Lowest Cost ISOLATION AMPLIFIER
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Tube
Amplifier Type Isolation
Number of Circuits 1
SR - Slew Rate 2 V/μs
-3db Bandwidth 50kHz
Voltage - Input Offset 20mV
Operating Supply Current 5mA
Output Current per Channel 15mA
Dual Supply Voltage (±) ±4.5 V ~ 18 V
Operating Temperature Range -25°C ~ 85°C
Mounting SMD
Package 28-SOIC (0.295", 7.50mm Width) 8 Leads
Manufacturer Package 8-SOIC
Win Source Part Number 1190591-ISO122U
Manufacturer Homepage www.ti.com
Family Name ISO122
Introduction Date April 01, 2005
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2028
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Automation & Process Control, Metering, Motor Drive & Control, Test & Measurement
Ultra Librarian 3D Model Ultra Librarian ISO122U CAD Model

Description

The ISO122U is a high-performance isolation amplifier developed by Texas Instruments, designed to offer reliable and precise voltage isolation. With its state-of-the-art technology, the ISO122U ensures that signals are transmitted accurately across a galvanic isolation barrier, making it an ideal choice for critical applications in industrial, medical, and other systems where isolation is a necessity.

Key Features

  • High Accuracy: The ISO122U boasts a low nonlinearity of 0.01% max at G = 100, ensuring high precision in signal amplification.
  • High Isolation Voltage: It offers a 1500Vrms of isolation voltage, providing a robust barrier against high voltage spikes and surges.
  • Low Offset Voltage: A low offset voltage of 50µV max and low offset drift of 0.5µV/°C max contribute to the amplifier's stable performance over temperature variations.
  • Bipolar Operation: The device supports a wide input signal range, making it suitable for both unipolar and bipolar input signals.
  • High Bandwidth: With a bandwidth of up to 100kHz, the ISO122U can handle a broad range of signal frequencies without compromising the integrity of the signal.
  • Robust Packaging: Available in an 8-pin plastic DIP and 16-pin SOIC, the ISO122U is designed for easy integration into a variety of circuit designs.
  • Single Supply Operation: It can operate from a single +4.5V to +36V power supply or a dual ±4.5V to ±18V power supply, providing flexibility in power design.

Applications

The ISO122U is versatile and can be deployed in numerous applications that require accurate signal isolation, such as:

  • Data acquisition systems
  • Ground loop elimination
  • Industrial process controls
  • Test equipment
  • Motor control feedback systems
  • Medical equipment

With its exceptional performance and reliability, the ISO122U from Texas Instruments stands out as a premier solution for designers looking to maintain signal integrity across isolated interfaces.
