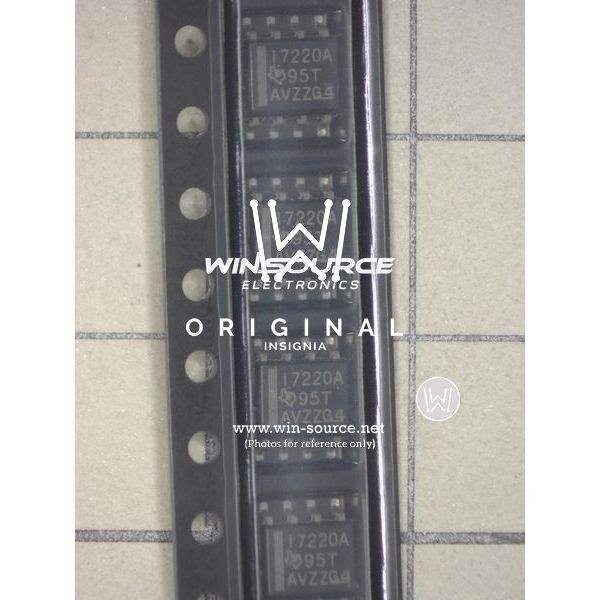

ISO7220ADRG4

Name: ISO7220ADRG4
Brand: Texas Instruments
SKU: 164632
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ISO7220ADRG4
Manufacturer	Texas Instruments
Catalog	Digital Isolators
Description	DGTL ISO 2.5KV GEN PURP 8SOIC
Datasheet	ISO7220ADRG4 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Texas Instruments
Packaging	Reel - TR
Status	Active
Technology	Capacitive Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	2
Inputs - Side 1/Side 2	2/0
Channel Type	Unidirectional
Isolation Voltage	2500Vrms
Common Mode Transient Immunity (Min)	25kV/μs
Data Rate	1Mbps
Propagation Delay tpLH / tpHL (Max)	475ns, 475ns
Pulse Width Distortion (Max)	14ns
Rise and Fall Time	1ns, 1ns
Supply Voltage - Operating	3 V to 5.5 V
Temperature Range - Operating	-40°C to 125°C
Case / Package	8-SOIC
Win Source Part Number	090332-ISO7220ADRG4
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Automation & Process Control, Sensing & Instrumentation, Motor Drive & Control, Industrial
Ultra Librarian 3D Model	Ultra Librarian ISO7220ADRG4 CAD Model

Description

The ISO7220ADRG4 is a high-performance, dual-channel digital isolator product designed and manufactured by Texas Instruments, a renowned American technology company that specializes in designing and manufacturing semiconductors and various integrated circuits.

Channels: Two isolation channels (independent, bidirectional communication)
Data Rates: Up to 1 Mbps
Isolation Voltage: 2500 Vrms
Supply Range: 3.0 V to 5.5 V
Package: 8-pin SOIC
Operating Temperature Range: -40°C to +125°C
