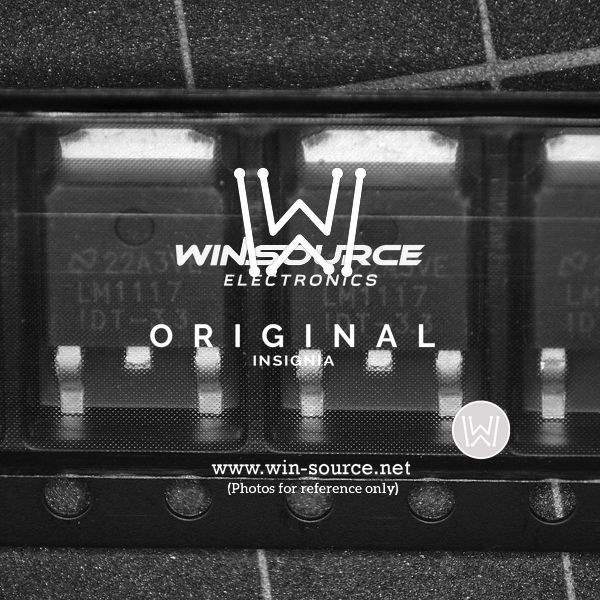

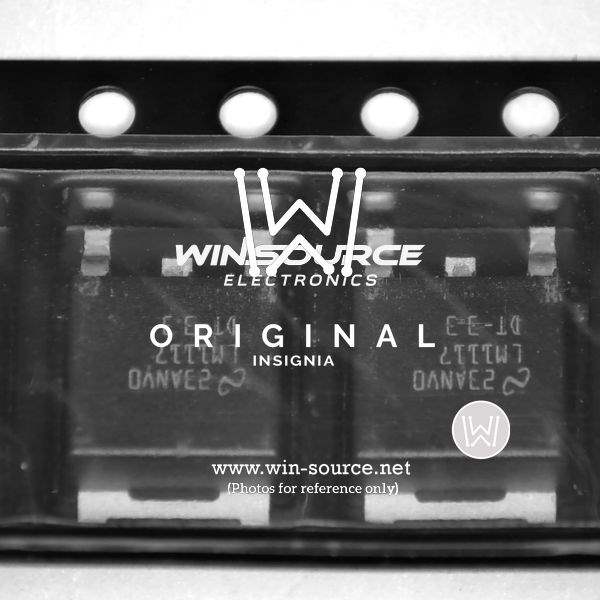

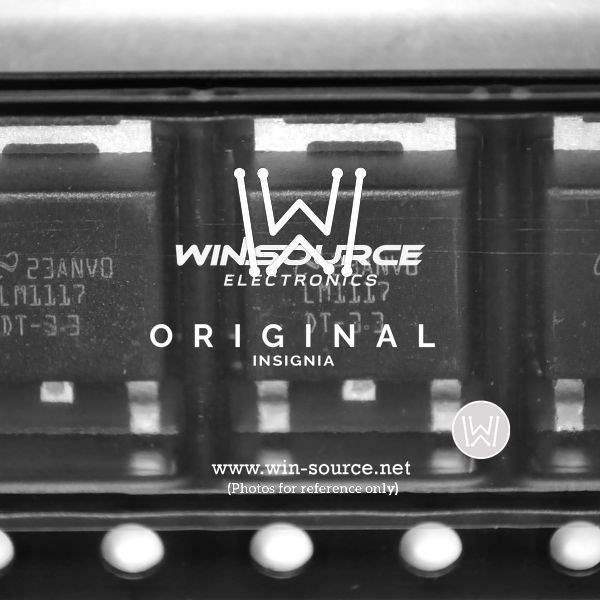

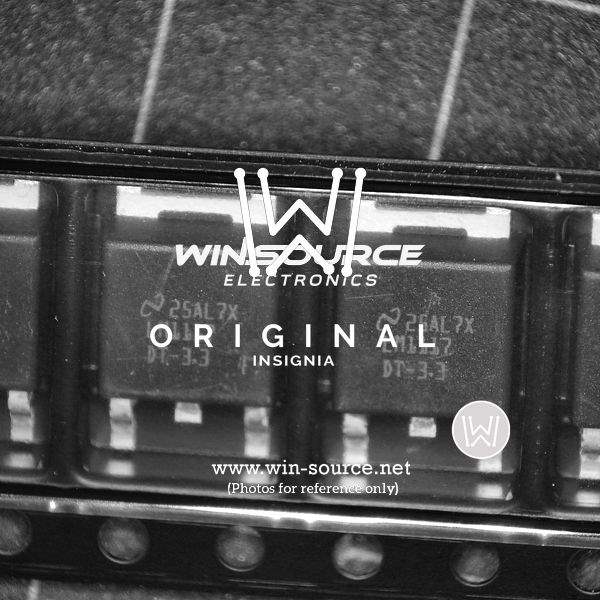

LM1117DTX-3.3/NOPB Texas Instruments LM1117DTX-3.3/NOPB Real Image LM1117DTX-3.3/NOPB Real Image1 LM1117DTX-3.3/NOPB Real Image2 LM1117DTX-3.3/NOPB Real Image3 LM1117DTX-3.3/NOPB Real Image4 LM1117DTX-3.3/NOPB Real Image5 LM1117DTX-3.3/NOPB Real Image6 LM1117DTX-3.3/NOPB Real Image7 LM1117DTX-3.3/NOPB Real Image8 LM1117DTX-3.3/NOPB Real Image9
Same model may have multiple batches, images only for reference.
LM1117DTX-3.3/NOPB Texas Instruments LM1117DTX-3.3/NOPB Real Image LM1117DTX-3.3/NOPB Real Image1 LM1117DTX-3.3/NOPB Real Image2 LM1117DTX-3.3/NOPB Real Image3 LM1117DTX-3.3/NOPB Real Image4 LM1117DTX-3.3/NOPB Real Image5 LM1117DTX-3.3/NOPB Real Image6 LM1117DTX-3.3/NOPB Real Image7 LM1117DTX-3.3/NOPB Real Image8 LM1117DTX-3.3/NOPB Real Image9
LM1117DTX-3.3/NOPB Texas Instruments LM1117DTX-3.3/NOPB Real Image LM1117DTX-3.3/NOPB Real Image1 LM1117DTX-3.3/NOPB Real Image2 LM1117DTX-3.3/NOPB Real Image3 LM1117DTX-3.3/NOPB Real Image4 LM1117DTX-3.3/NOPB Real Image5 LM1117DTX-3.3/NOPB Real Image6 LM1117DTX-3.3/NOPB Real Image7 LM1117DTX-3.3/NOPB Real Image8 LM1117DTX-3.3/NOPB Real Image9
Same model may have multiple batches, images only for reference.

LM1117DTX-3.3/NOPB

Part No LM1117DTX-3.3/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description LDO Regulator Pos 3.3V 0.8A 3-Pin(2+Tab) TO-252 T/R / IC REG LDO 3.3V 0.8A TO252-3
Datasheet
LM1117DTX-3.3/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 1.2V @ 800mA
Output Current 800mA
Operating Supply Current 5mA to 10mA
PSRR 75dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 1.2V @ 800mA
Mounting SMD (SMT)
Case / Package TO-252-3
Win Source Part Number 018642-LM1117DTX-3.3/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LM1117
Introduction Date June 01, 1998
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LM1117DTX-3.3/NOPB CAD Model

Description

The LM1117DTX-3.3/NOPB is a high-quality, advanced linear voltage regulator product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Output Voltage: 3.3V
  • Output Current: 800mA
  • Input Voltage Range: 1V to 10V
  • Dropout Voltage: 1.2V @ maximum load
  • Feature: low dropout performance for lower power consumption
  • Features: current limiting and thermal shutdown
  • Package: TO-252 (D Pak) package
  • Compliance: RoHS compliant
  • Accuracy: 1% tolerance on output voltage
