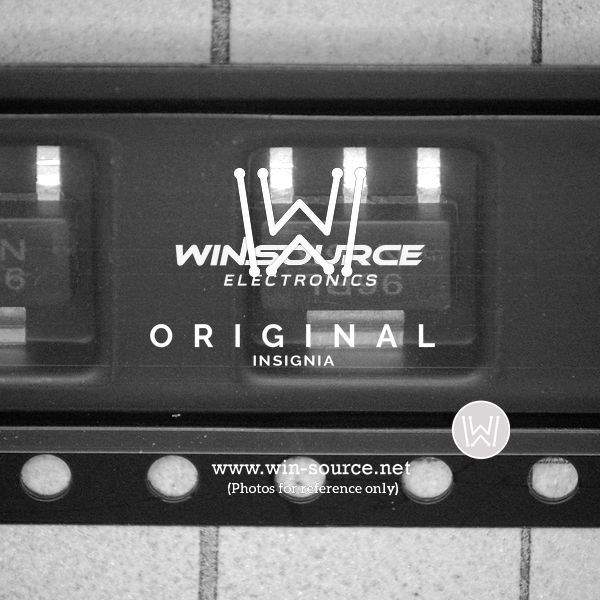

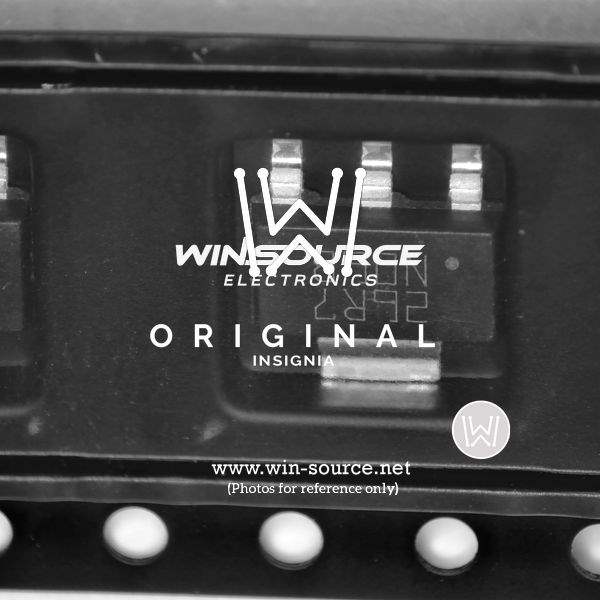

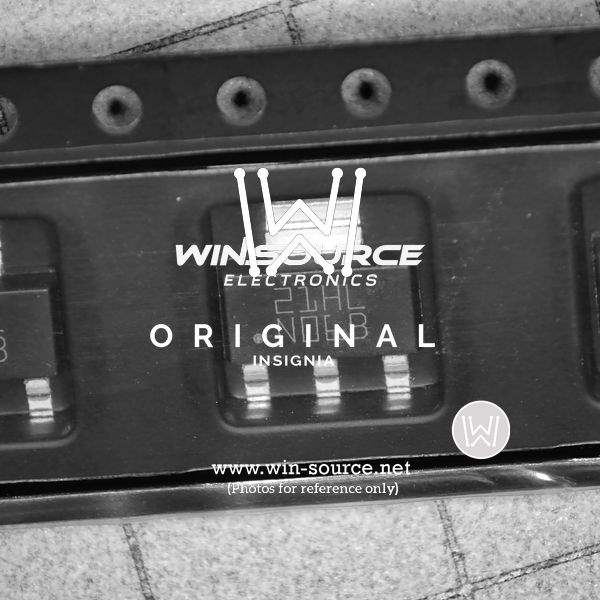

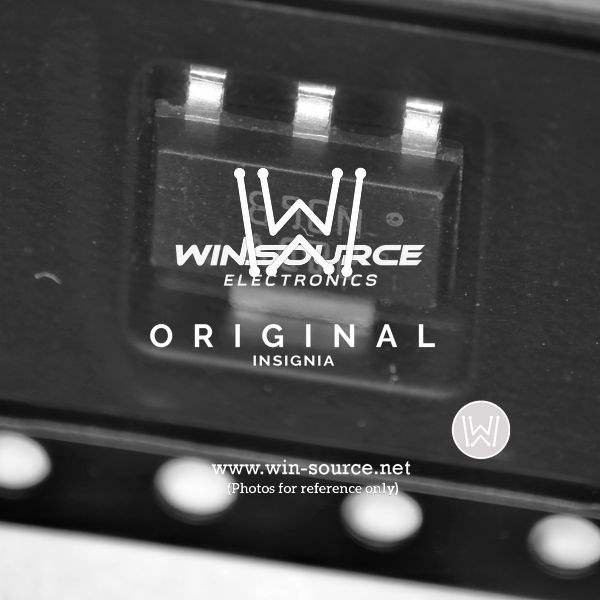

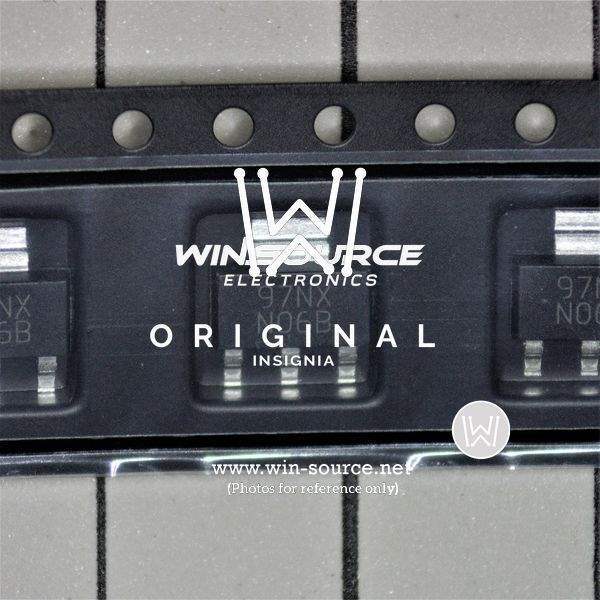

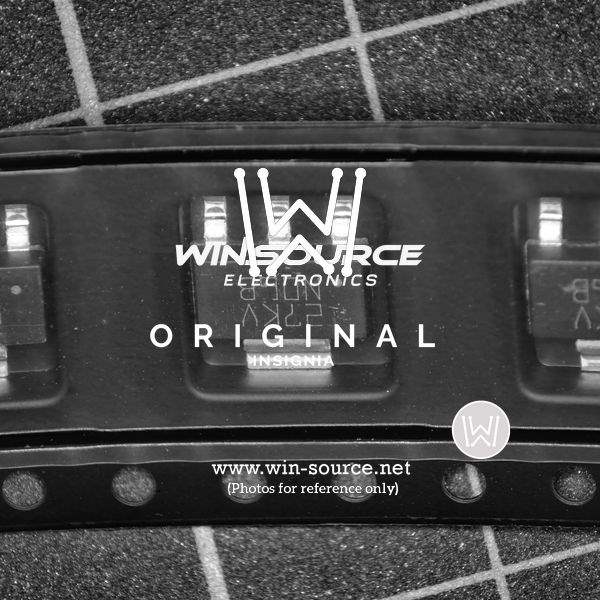

LM1117IMPX-5.0

Part No LM1117IMPX-5.0
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description LDO Regulator Pos 5V 0.8A 4-Pin(3+Tab) SOT-223 T/R / 800mA Low-Dropout Linear Regulator | IC REG LINEAR 5V 800MA SOT223-4
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel
Status Obsolete
Output Type Fixed
Voltage - Input (Maximum) 15V
Min/Fixed Output Voltage 5V
Maximum Dropout Voltage 1.2V at 800mA
Output Current 800mA
Current - Quiescent (Iq) 5mA
Maximum Supply Current 10mA
PSRR 75dB (120Hz)
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package TO-261-4, TO-261AA
Supplier Device Package SOT-223-4
Family Part Number LM1117
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1196724-LM1117IMPX-5.0
Manufacturer Homepage www.ti.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management
Family Name LM1117
Introduction Date October 01, 2002
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LM1117IMPX-5.0 CAD Model

Description

Product Overview: LM1117IMPX-5.0 Voltage Regulator

The LM1117IMPX-5.0 is a low dropout voltage regulator designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This regulator is capable of delivering a fixed output voltage of 5.0V with a current up to 800mA. The LM1117 series offers high-efficiency power conversion, which is essential for modern electronic devices that require stable voltage supplies.

Key Features:

  • Output Voltage: 5.0V fixed output, which is ideal for logic circuits and standard 5V-operated devices.
  • Output Current: Capable of delivering 800mA of load current, making it suitable for a wide range of applications.
  • Low Dropout: The low dropout performance ensures efficient operation even with very low input-output voltage differentials.
  • Thermal Shutdown and Current Limit Protection: Integrated safety features protect the device and the load from excessive temperature and current.

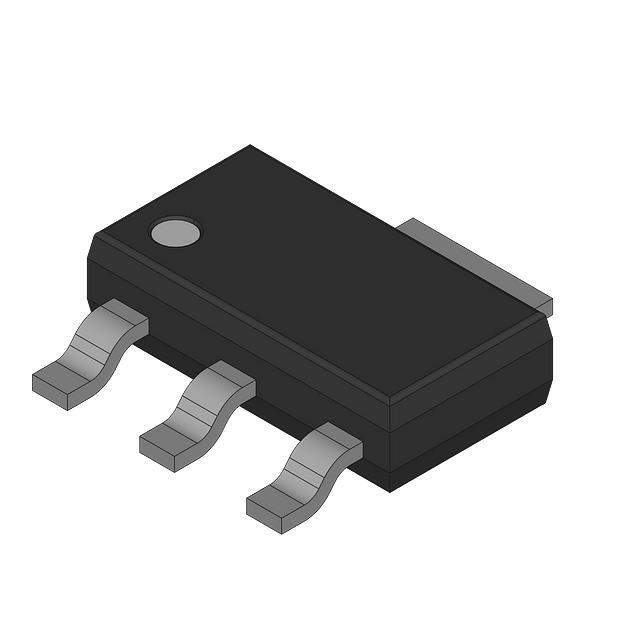

  • Package: Available in an SOT-223 package, which is compact and suitable for surface-mount technology (SMT).
  • Line Regulation: Maintains consistent output voltage despite variations in the input voltage.
  • Load Regulation: Keeps the output voltage stable under various load conditions.

Applications:

The LM1117IMPX-5.0 is versatile and can be used in a variety of applications, including:

  • Consumer Electronics
  • Computer Systems
  • Instrumentation
  • Peripheral Devices

Quality and Reliability:

Texas Instruments is renowned for its commitment to quality and reliability, and the LM1117IMPX-5.0 is no exception. It is designed to meet the rigorous standards of the industry, ensuring long-term stability and performance in your electronic designs.

Ordering Information:

When ordering the LM1117IMPX-5.0, ensure to specify the correct package type and quantity. For additional information and technical support, Texas Instruments provides extensive documentation and customer service resources to assist with your design and implementation needs.
