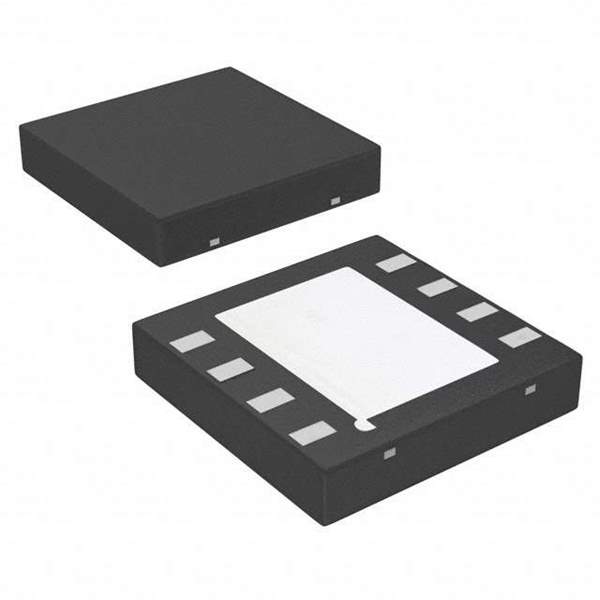

LM1117LDX-1.8/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM1117LDX-1.8/NOPB

Part No LM1117LDX-1.8/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.8V 0.8A 8WSON
Datasheet
LM1117LDX-1.8/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 1.8V
Dropout Voltage-Max 1.2V @ 800mA
Output Current 800mA
Operating Supply Current 5mA to 10mA
PSRR 75dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 1.8V
Voltage - Dropout (Typical) 1.2V @ 800mA
Mounting SMD (SMT)
Case / Package 8-WSON (4x4)
Win Source Part Number 018648-LM1117LDX-1.8/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM1117LDX-1.8/NOPB CAD Model

Description

The LM1117LDX-1.8/NOPB is a high-quality, reliable, and efficient voltage regulator from Texas Instruments, a leading global semiconductor company.

  • Maximum Input Voltage: 15V
  • Output Voltage: 1.8V (fixed)
  • Regulator Type: Low-dropout linear regulator
  • Maximum Dropout Voltage: 1.2V
  • Output Current: Up to 800mA
  • Package: TO-263 (D2PAK)
  • Safety Features: Over-temperature and over-current protection
  • Compliance: RoHS compliant
