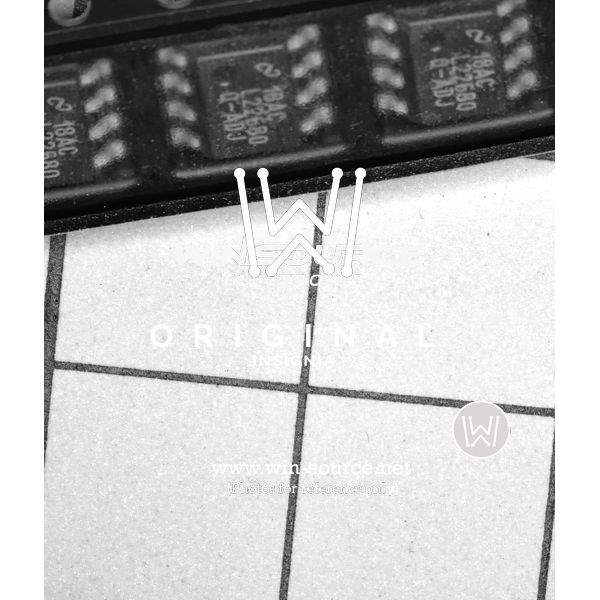

Product Overview: LM22680QMRE-ADJ/NOPB

The LM22680QMRE-ADJ/NOPB is a highly versatile, energy-efficient step-down voltage regulator from Texas Instruments (TI), designed to meet the requirements of modern electronic applications. This adjustable output regulator is capable of delivering up to 2A of continuous output current with excellent load and line regulation. The device operates within an input voltage range of 4.5V to 42V, making it suitable for a wide array of applications, including industrial, automotive, and telecommunications equipment.

The LM22680 series integrates a host of features to ensure both high-performance and reliable operation. It includes thermal shutdown, current limit protection, and an adjustable soft-start function that limits inrush current during startup, thus providing additional protection to sensitive components. The regulator's high-efficiency design, with a low quiescent current and a shutdown mode that reduces the current consumption to a mere 15μA, makes it an excellent choice for battery-powered and energy-conscious applications.

This regulator offers an adjustable output voltage range that can be set from 1.285V to 37V with the use of external resistors. This flexibility allows designers to tailor the output voltage to the specific needs of their application without the need for multiple different regulators. The LM22680QMRE-ADJ/NOPB also features a fixed switching frequency of 500kHz, which provides an optimal balance between efficiency, external component size, and cost.

The device is available in a thermally enhanced 16-lead WQFN package, ensuring efficient heat dissipation and a compact footprint. The LM22680QMRE-ADJ/NOPB is also part of TI's "Green" product portfolio, which means it is manufactured with environmentally friendly materials and processes, complying with RoHS standards.

In summary, the LM22680QMRE-ADJ/NOPB from Texas Instruments is a reliable, efficient, and flexible solution for a wide range of power supply applications. Its robust protection features, high efficiency, and adjustable output make it an ideal choice for designers looking to optimize their power management systems.
