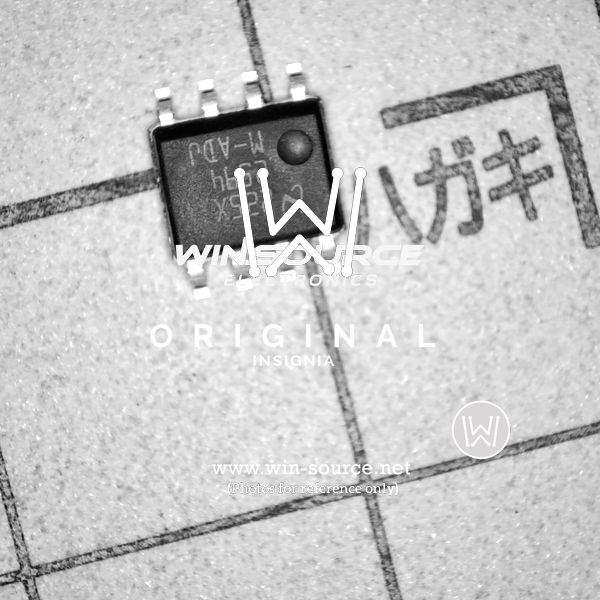

LM2594M-ADJ/NOPB

Part No LM2594M-ADJ/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK ADJ 0.5A 8-SOIC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 4.5V
Maximum Input Voltage 40V
Nominal Output Voltage (Min/Fixed) 1.2V
Maximum Output Voltage 37V
Output Current 500mA
Frequency - Switching 150kHz
Synchronous Rectifier No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 1053129-LM2594M-ADJ/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM2594M-ADJ/NOPB CAD Model

Description

Product Overview: LM2594M-ADJ/NOPB

The LM2594M-ADJ/NOPB from Texas Instruments is a versatile and efficient voltage regulator integrated circuit belonging to the SIMPLE SWITCHER® family of power converters. This adjustable output step-down (buck) switching regulator is designed to provide a simple and robust solution for a wide range of applications requiring voltage regulation.

Key Features

  • Adjustable Output Voltage: Its adjustable output allows for a range of voltage levels to be set by the user, making it suitable for various applications.
  • High Efficiency: The device operates at high efficiency, which can reach up to 77% at 3A load, minimizing energy loss and heat generation.
  • Wide Input Voltage Range: It can handle an input voltage range from 4.5V to 40V, accommodating a variety of power sources.
  • Output Load Current: The LM2594M-ADJ/NOPB is capable of driving a 0.5A load with excellent line and load regulation.
  • 52 kHz Fixed Frequency Internal Oscillator: The fixed frequency oscillator reduces the need for external components and simplifies the design process.
  • Thermal Shutdown and Current Limit Protection: Built-in safety features protect the device from excessive current and overheating.
  • Surface-Mount Package: The device comes in a surface-mount, 14-pin SOIC package, which is suitable for automated assembly processes.

Applications

The LM2594M-ADJ/NOPB is ideal for a variety of applications, including but not limited to:

  • Simple high-efficiency step-down (buck) regulators
  • Efficient pre-regulator for linear regulators
  • On-card switching regulators
  • Positive to negative converter (Buck-Boost)

Environmental and Quality Certifications

This product is available in a lead-free, RoHS-compliant package, ensuring adherence to the latest environmental standards. The LM2594M-ADJ/NOPB is also part of Texas Instruments' commitment to quality, backed by their rigorous testing and reliability procedures.
